1.1200L Fermentation Tank Introduction
The TIANTAI 1200L Fermentation Tank is designed for small to medium-scale craft breweries seeking reliable, efficient, and hygienic fermentation solutions. Constructed from high-quality 304/316 stainless steel, this tank meets international sanitary standards and ensures the consistent production of premium craft beer.
Featuring a cylindroconical design (60° cone angle), the 1200L fermenter supports effective yeast sedimentation, easy yeast collection, and simplified trub removal. The tank comes fully equipped with glycol cooling jackets for precise temperature control, CIP spray balls for thorough cleaning, and pressure-rated construction suitable for fermentation and maturation.
The TIANTAI 1200L fermentation tank is a highly reliable and versatile choice for breweries looking to scale up production while ensuring superior beer quality, operational efficiency, and long-term durability.
2.Features
- Capacity: 1200 Liters (working volume)
- Construction: Food-grade 304/316 stainless steel with sanitary internal finish (Ra ≤0.4μm)
- Temperature Control: Multi-zone glycol cooling jackets with accurate sensor monitoring
- Pressure & Safety: Pressure-rated tank with PRV, sample valve, manway, and pressure gauge
- Cleaning & Maintenance: CIP spray system and bottom drain for quick and easy sanitation
- Applications: Ideal for ales, lagers, and specialty beers in brewpubs and microbreweries
3.Configuration
| Function: | Fermenting for beer, kombucha, cold coffee, cider |
| Material: | SUS304 full welded; Interior TH=3mm,Exterior TH=2mm. |
| Interior Finish: | Sanitary 2B finish, Pickled and Passivated; (8K Mirror finish optional) |
| Exterior Finish: | Oil brushed finish(2B, 8K Mirror finish optional) |
| Welding & Polishing： | 100% TIG welding with pure argon gas shield; Interior full polished to 0.2~0.4 μm without dead corner. |
| Insulation: | TH=80mm with low thermal conductivity PU |
| Cooling: | 35% Glycol liquid -5℃; Cooling Jacket,Dimple plate on bottom and side wall, welded without over burning |
| Working Pressure: | 2bar/30psi |
| Top & Bottom: | Full polished Dished top, Conical bottom with 60° |
| Manway: | Sanitary side/top mounted oval manhole with pressured door |
| CIP : | CIP arm with four-way connection and butterfly valve; Top mounted double clamp 360° rotary CIP spraying ball and port, 1pcs |
| Mechanical safe valve PVRV: | 2bar/30psi on top (1bar/15psi available) |
| Sampling Valve: | Full sanitary sampling valve with EPDM seal |
| Pressure gauge: | Hydraulic shock standard on CIP arm (Diaphragm type for optional) |
| Discharge arm: | With butterfly valve, Removable and easy to clean |
| Thermowell : | Sanitary welded thermowell for high accuracy temperature sensor 1pcs |
| Carbonation: | Carbonation port with CO2 dissolved stone 0.22um |
| Glycol water port: | In/out port on side wall and cone, thick wall pipe thread (Top or bottom design available) |
| Legs: | 4pcs completely SUS304 legs with braces,heavy duty foot pad with up-down and slop adjustable |
| Accessories: | Complete valves, fittings and all parts, Tri clamp/DIN Union available |

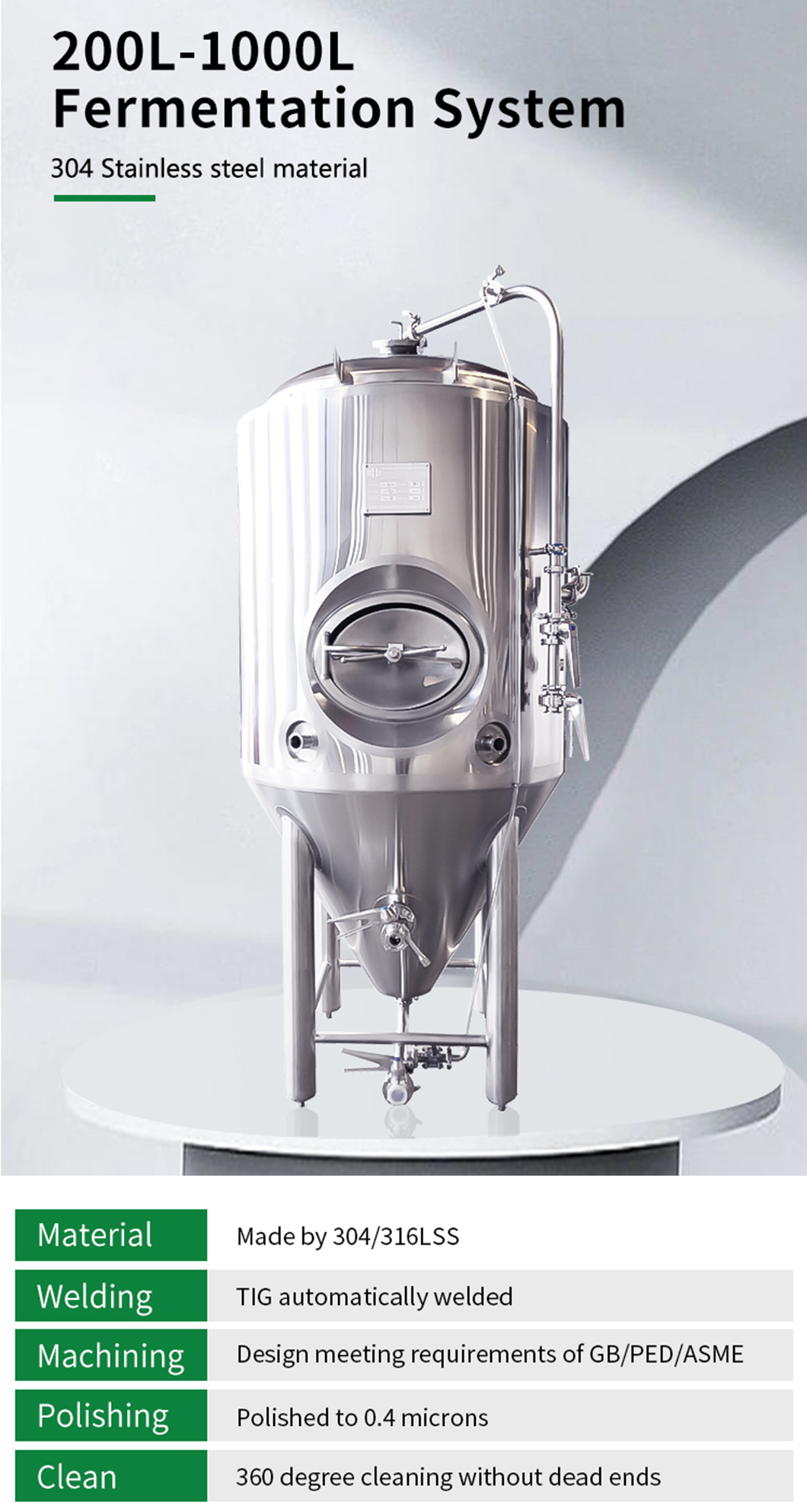

4.Fermentation Tank Details
5.You may be also Interested in
- Grain Malts Miller Machine
- Brewhouse System
- Bright tank
- Beer Filter
- Beer Keg Filler Machine
- Keg Rinser/Washer Machine
- Beer Bottling & Capping Machine
- Labeling Machine
6.Cases
7.Tiantai Company Profile
Tiantai Company, a well-recognized manufacturer of beer and beverage equipment industry based in Jinan city of China, provides complete production line and the turnkey service for breweries and beverage projects worldwide. Since 2001, Tiantai team has witnessed the rapid development of the industry with 23 years of experience. Founded in 2012 and followed by the boom of the craft beer and beverage market, Tiantai Company is committed to the research and the development of diverse brewing process, customized equipment, automatic control, and datalized management. Up to now, Tiantai Company has served over 2600 beverage factories with our equipment and solutions along with gaining good reputations.
