1.Production Description
Tiantai Brewtech is specialize in automatic canning machine, providing high-efficiency and intelligent filling line solutions for the beer and beverage industry. The canning machine includes rinsing filling seaming function. Apply for all kinds of cans.
We are a globally recognized manufacturer of brewing and beverages equipment based in China. With years of experience and a commitment to innovation, Tiantai provides complete turnkey solutions for breweries and beverage projects worldwide. Whether you’re producing beer, distillery, wine, kombucha, hard seltzer, cider, cold brew coffee, RTD drinks, Soju, Sake, or other beverages, Tiantai has the expertise and equipment to meet your needs.
| Can rinsing machine |
| Function: Can rinsing |
| Main parts: imported cans, the spray water tank and the straight transportation chute, the sprinkling pipe and the outlet pipe, the outlet canning device, the installation base |
| Material: 304 stainless steel |
| 12 nozzles |
| Spray length: 850mm |
| Canister and linear conveying chute: stainless steel rods |

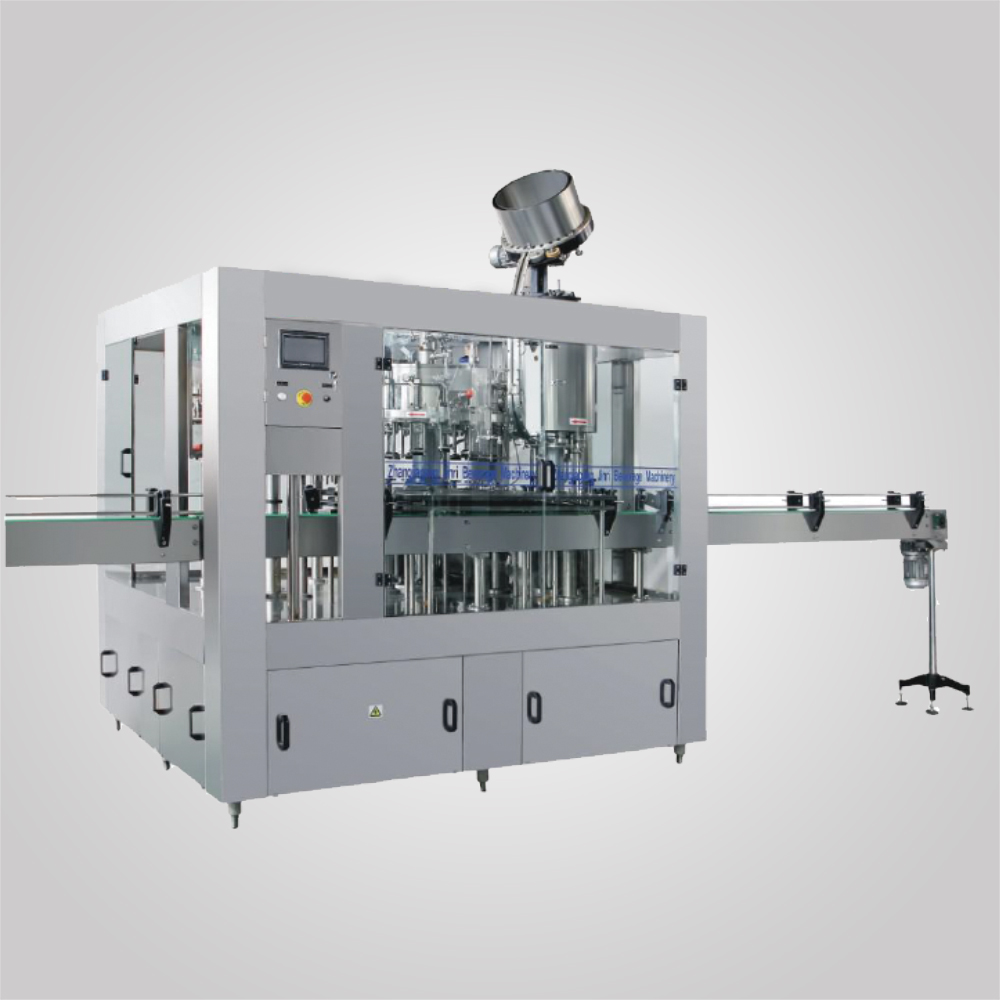

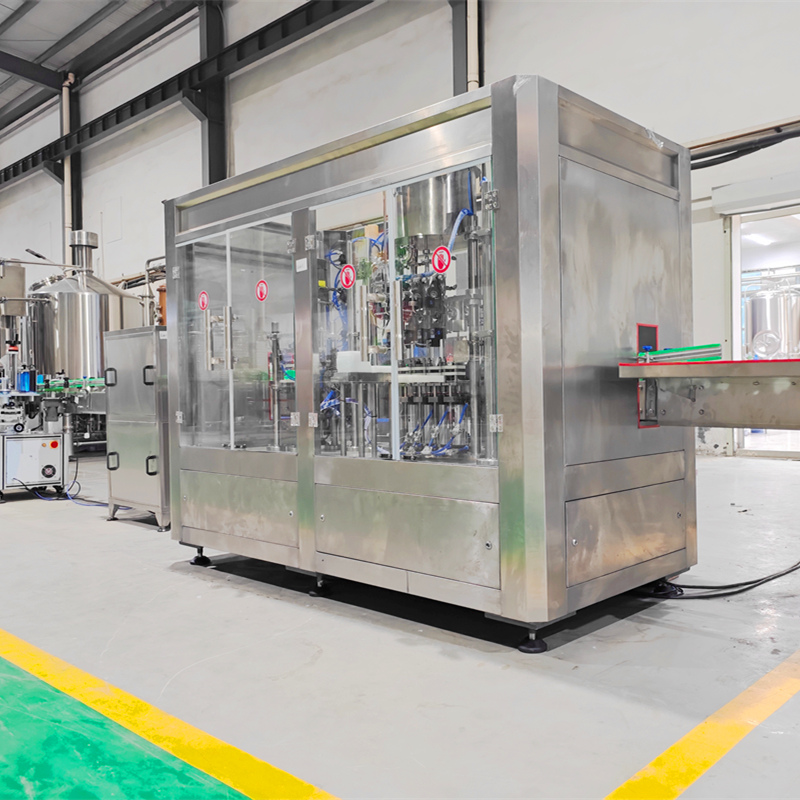

| Beer can filling and sealing machine |
| Capacity: 2400-6000 cans per minute |
| All kinds of aluminum can |
| Filling head: 18 head |
| Sealing head:4 head |
| Suitable can height: 85~140mm |
| Suitable can diameter：ф53~ф66mm |
| Filling temperature：0~4℃ |
| Filling pressure：0.3-0.5Mpa |
| Compressed air pressure： 0.5~0.6MPa |
| C02 pressure：0.5-0.6Mpa |
| Motor power： 4.87KW |
| Size：3200×2150×2020mm |
| Weight ：3270Kg |
| 1meter length Feeding conveyor included |
| 1meter length Outlet conveyor included |
2.Features
Filling machine:
–Isobaric filling, mechanical valve, three open valve and twice closing valve, by increasing the switching valve means to control the amount of oxygen in beer, while ensuring that sensitive filling fast, filling high-level precision.
–Adopt filling valve orifice with guide means combined to ensure accurate sealed bottle and filling valve, reducing the material from can mouths leakage phenomenon.
–Depending on the height of the can type, it can automatically lift to meet the filling requirements. Dial positioning plate designed to adjust the bottle type single-station standalone, single-position adjustment can be adjusted without affecting other stations.
–Gear transmission has high efficiency, low noise, long life, easy maintenance, lubrication fully, the frequency control the main motor speed , machine adopts stepless frequency control.
–Cans guide system can be quickly and easily changed according to the cans type, the machine use the whole can bottom structure supported.
–PLC automatic control, easy to operate, a fault-line display. With no cans valve does not open, no add caps, lack of cover downtime and other security features.
–Filling cylinder’s material automatic control, using highly liquid level sensor testing to ensure reliable filling level and stable.
–Each filling valve has cleaning cup, more convenient cleaning.
Sealing machine:
–Cans roller with high hardness alloy steel hardened, sealing curve optical curve grinding precision machining.
–This machine has a can having a cover, no cans no caps control system, ensure the normal operation of the machine, reducing the rate of loss cover.
–Artificial aluminum lid placed in the chute by gravity and thruster cover next cover, fitted in the chute detection switch for lack of guarantee cover will automatically stop.
–Depending on the different cans height, sealing machine can automatically lift to meet the requirements.
3.Complete Production Line for Commercial Brewing Factory Equipment
| Malt Storage System |
| Malt Milling System |
| Brewhouse System |
| Fermentation System |
| Filtration System |
| Maturation and Conditioning |
| Pasteurization System |
| Control System |
| CIP System |
| Hot Water Supply |
| Cold Water Supply |
| Brewing Water Supply |
| Refrigeration System |
| Water De-aeration Systems |
| Reverse Osmosis System |
| Steam Supply System |
| Compressed Air Supply System |
| CO2 Supply System |
| CO2 Recovery System |
| Electricity Supply System |
| High-Gravity Dilution System |
| Packing System (bottles/cans) |
