1. Production Description
Tiantai Brewtech is specialize in automatic 3-in-1 bottling machine packing line, providing high-efficiency and intelligent filling line solutions for the beer and beverage industry. The bottling machine includes rinsing filling capping function. Apply for crown cap, pull ring cap, aluminum cap. It adopts advanced technologies of one time vacuum, two times vacuum, blowing foam structure, exhaust, reduces the oxygen of beer bottle and make beer taste more better.
We are a globally recognized manufacturer of brewing and distilling equipment based in China. With years of experience and a commitment to innovation, Tiantai provides complete turnkey solutions for breweries and beverage projects worldwide. Whether you’re producing beer, distillery, wine, kombucha, hard seltzer, cider, cold brew coffee, RTD drinks, Soju, Sake, or other beverages, Tiantai has the expertise and equipment to meet your needs.
2. Main components

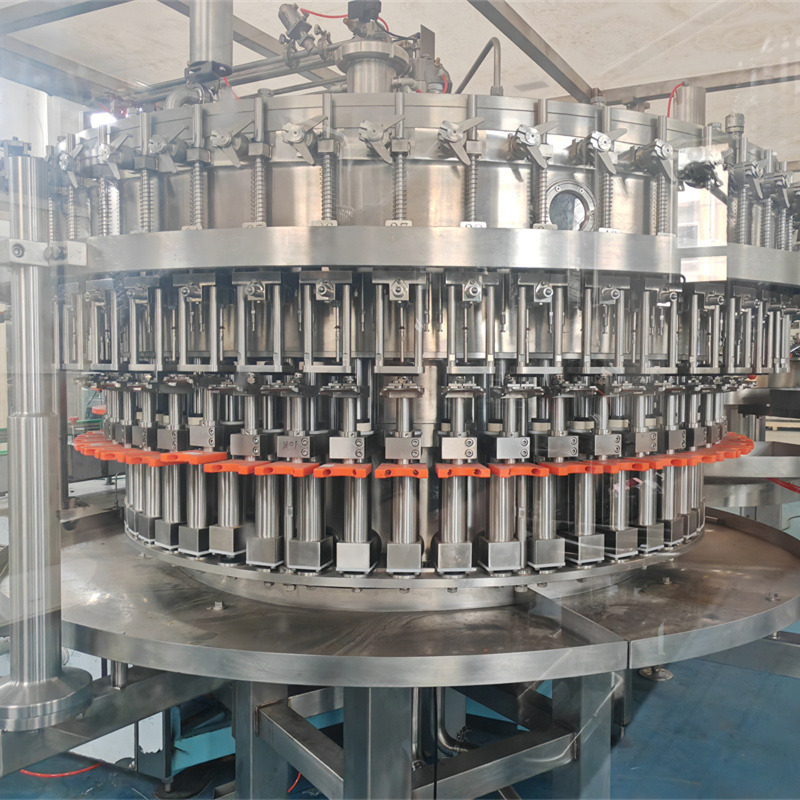

Beer filling machine (3-in-1)
Bottling speed: 5000 bottles/hour
Bottle size: 330ml 500ml 660ml……
Rinsing heads: 32
Filling heads: 32
Capping heads: 10
Automatic cap loader
Bottle drying machine
Single sides sticker labeling machine
Ink jet date print machine
Bottle collection platform
Depalletizer machine
Beer pasteurizer tunnel machine
Automatic carton packing machine
Robot Palletizer machine
Belt conveyor
3.Features
1) High precision mechanical filling valves.
2) With high pressure frothing device, it is capable of double vacuum-pumping.
3) Combined transmission stepless speed control, extending the speed modulating scope.
4) Automatic lubricating device.
5) Full stainless steel magnetic hopper
6) Automatic loading, lower the bottle breakage.
7) Centering guide adopted double guide-bar mechanism, pre-covering which allows stable and reliable bottle transferring.
8) The movement of the bottle and capping heads is driven by electricity in order to fit bottles of different size.
9) The liquid height is controlled by electric probe so as to ensure precise liquid level and reliable filling.
4.Technologies and Services
1) Study/Costing
We provide you with competent and consistent support during the evaluation of your investment.
2) Technical Support
We offer: 2D/3D drawings, Layout plan, Interactions with civil engineering work.
3) Manufacturing
Using modern manufacturing techniques, we produce precise, high quality stainless steel tanks.
4) Installation
Our company has professional civil and mechanical piping staff, who provide you with on-site guidance and information about their project type.
5) Application/Training
Our training for you: Operator training, Maintenance training, Automation training, Individual training for your specific needs
6) Maintenance
At Tiantai, we offer a remote assistance service that allows our technicians to interact with operators remotely.
7) Optimization
If you have equipment that needs upgrades or retrofitting, we can help you analyze its performance and identify areas for improvement.
8) Spare Parts
No down-time, only on-time.The parts you order from us are the exact same or better than those already installed in your equipment.
5. Complete Production Line for Commercial Brewing Factory Equipment
Malt Storage System
Malt Milling System
Brewhouse System
Fermentation System
Filtration System
Maturation and Conditioning
Pasteurization System
Control System
CIP System
Hot Water Supply
Cold Water Supply
Brewing Water Supply
Refrigeration System
Water De-aeration Systems
Reverse Osmosis System
Steam Supply System
Compressed Air Supply System
CO2 Supply System
CO2 Recovery System
Electricity Supply System
High-Gravity Dilution System
Packing System (bottles/cans)
