1.Production Description

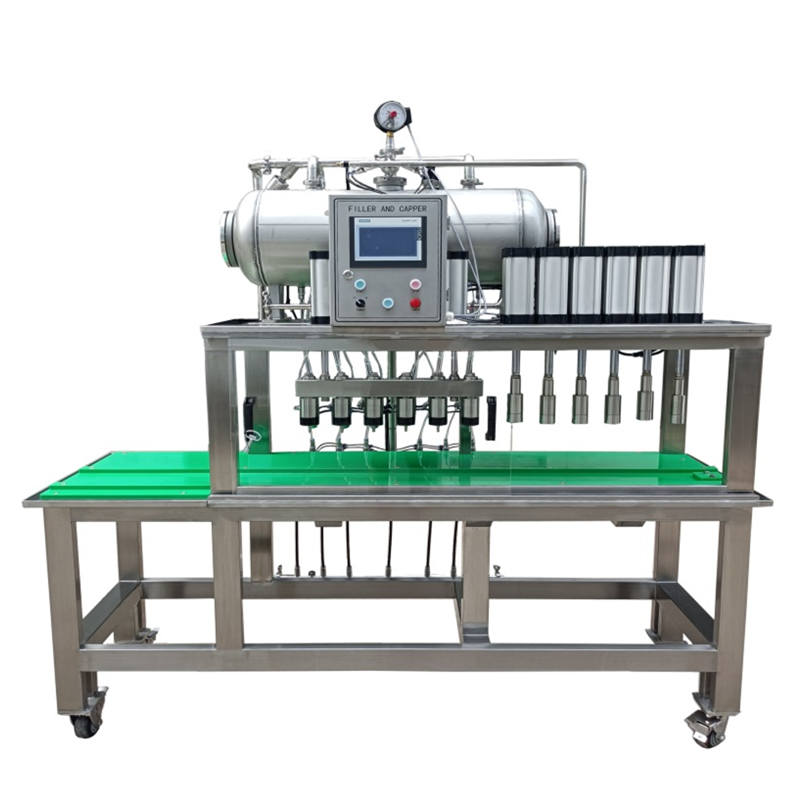

Tiantai Brewtech is specialize in Semi Automatic Glass PET Bottle Filling Screwing Bottling Machine, providing high-efficiency and intelligent filling line solutions for the beer and beverage industry. The bottling machine includes filling and screwing function. Apply for Glass bottle or PET bottle, plastic screwing cap.
We are a globally recognized manufacturer of brewing and distilling equipment based in China. With years of experience and a commitment to innovation, Tiantai provides complete turnkey solutions for breweries and beverage projects worldwide. Whether you’re producing beer, distillery, wine, kombucha, hard seltzer, cider, cold brew coffee, RTD drinks, Soju, Sake, or other beverages, Tiantai has the expertise and equipment to meet your needs.
2. Main components
Function: Bottle Filling and Screwing
4/6/8/10 filling station and 4/6/8/10 capping station with Cylinder
Capacity: 200-1000 bottles/hr
Bottle Style: 330ml to 2000ml Glass bottle and PET bottle
Siemens Programmable Controller
CO2 pressured
Work Process: Place bottles-CO2 Pressurized-CO2 Pressurized–Filling-Pressure Stabilization-Pressure relief-Stop-Move to capping-Capping-Finish
Weight: 200kg
Dimension: 1500x800x2400mm
3.Features
–PLC programmable controller automatically controls the whole process, and the parameters can be adjusted.
–Filling and capping can be completed in one machine at a time
–Equipped with CO2 replacement.
–Adopting isobaric filling method, unique pressure maintenance system, stable and reliable, low beer loss.
–Automatic beer replenishment in the pressure stabilizing tank.

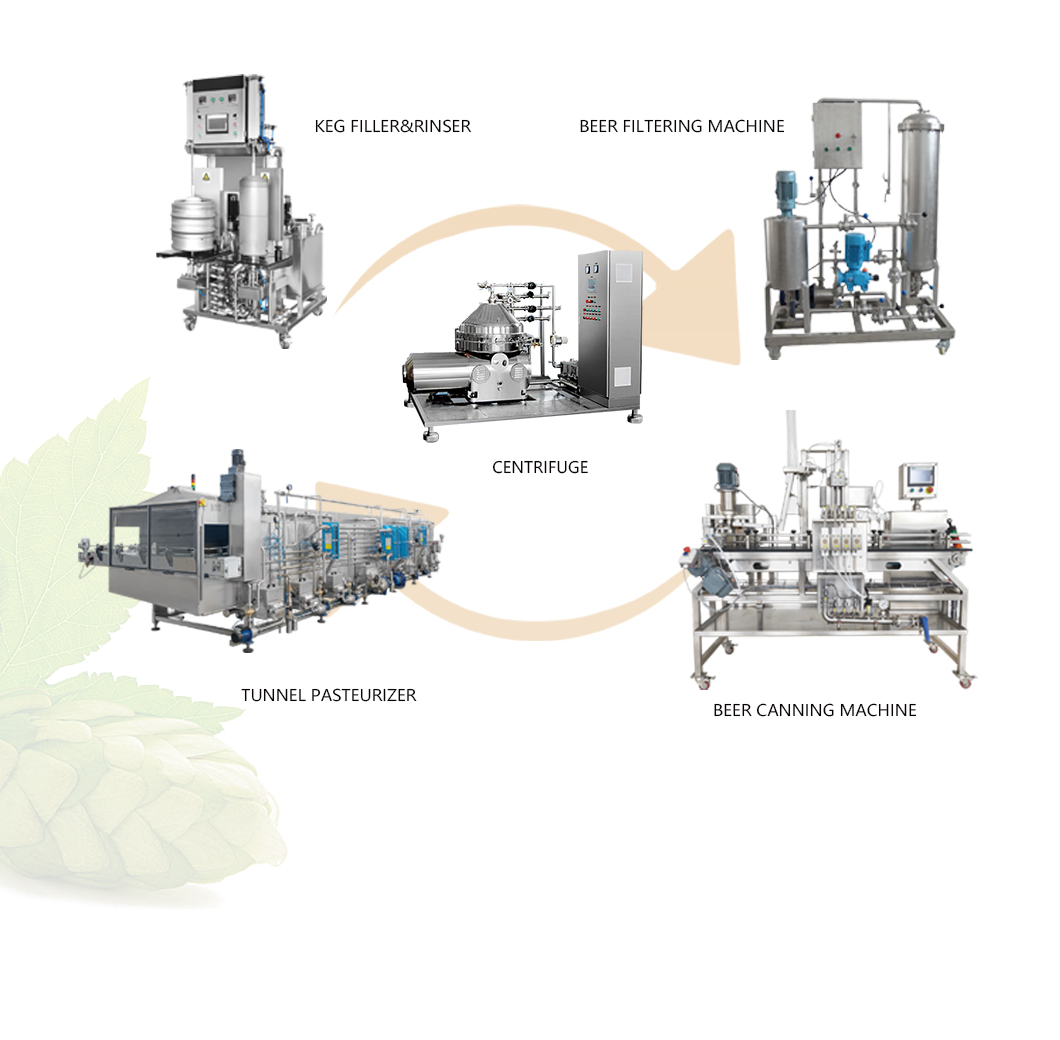

4. Complete Production Line for Commercial Brewing Factory Equipment
Malt Storage System
Malt Milling System
Brewhouse System
Fermentation System
Filtration System
Maturation and Conditioning
Pasteurization System
Control System
CIP System
Hot Water Supply
Cold Water Supply
Brewing Water Supply
Refrigeration System
Water De-aeration Systems
Reverse Osmosis System
Steam Supply System
Compressed Air Supply System
CO2 Supply System
CO2 Recovery System
Electricity Supply System
High-Gravity Dilution System
Packing System (bottles/cans)
5.Tiantai Company Profile
Tiantai Company, a well-recognized manufacturer of beer and beverage equipment industry based in Jinan city of China, provides complete lines and the turnkey service for breweries and beverage projects worldwide. Since 2001, Tiantai team has witnessed the rapid development of the industry with 23 years of experience. Founded in 2012 and followed by the boom of the craft beer market, Tiantai Company is committed to the research and the development of diverse brewing process, customized equipment, automatic control, and datalized management. Up to now, Tiantai Company has served over 2600 breweries in 106 countries with our equipment and solutions along with gaining good reputations.
