| General specification for 15000L brewery equipment | ||||
| No. | Name | Components | Capacity | Parameter |
| 1 | Grain Milling Unit | Rolling Miller | 3000-3500kg/hr | Double roller Speed differential |
| Flexible Auger | 4t/h | Stainless steel screw PVC pipe |
||
| Silo | 5000L | SUS304 | ||
| 2 | Brewhouse Unit | Mash tun | 15000L | Steam jacket on bottom and side Agitator inside Wort hydrator mounted top of mash tun |
| Lauter tun | 15000L | Grain rake with VFD Laser cutting V-wire False Bottom Easyclean and detachable sparging spray ring Multihole wort collect ring(optional) Anti-rinser(optional) |
||
| Kettle Tun | 15000L | Steam Jacket on bottom and side Steam vent with condensate ring for kettle stack |
||
| Whirlpool Tun | 15000L | |||
| Hot water tank | 45000L | |||
| Heat exchanger | 50M2 | SUS304 plate | ||
| 3 | Fermentation unit | Fermenter | 30000/60000 | Glyco cooling jacket on cone and bottom Side or top manway CIP arm and CO2 blow off arm Mechanical relief valve Shockproof pressure gauge Rotating racking arm Dry hopping port Carbonation stone Sight level |
| 4 | Filtration unit(optional) | Kieselguhr Filter | 5000kg/hr | Pressured candle type DE filter |
| 5 | Bright beer tank | Bright beer tank | 30000/60000 | Glyco cooling jacket on cone and bottom Side or top manway CIP arm and CO2 blow off arm Mechanical relief valve Shockproof pressure gauge Rotating racking arm Dry hopping port Carbonation stone Sight level |
| 6 | Glycol Chilling Unit | Glycol Water Tank | 20000L | Insulated conical top and sloped bottom |
| Cold Water Tank | 50000L | Dimple plate on side wall | ||
| Chiller | 40HPx2PCS | |||
| 7 | Control unit | Brewhouse controlling | PLC control with touch screen for special | |
| Fermentation Controling | PLC control with touch screen for special | |||
| 8 | CIP | Caustic Tank | 2000L | electric heating element inside |
| Sterilization Tank | 2000L | |||
| Sterile Water Tank | 2000L | |||
| Transfer&Control | ||||
| 9 | Others | Option | Can be Customized | Auger System |
| Grain Case | ||||
| Grist Hydrator | ||||
| Piping flow panel for Brewhouse | ||||
| Brewhouse Separate PLC Controller | ||||

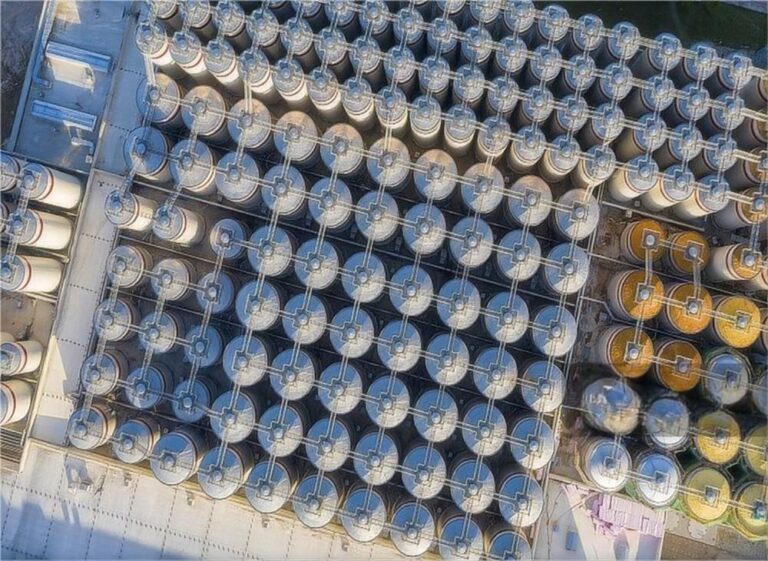

15000L Commercial Brewery System
The 15000L Commercial Brewery System is designed for industrial and large-scale commercial breweries, where the finished beer is packaged in bottles or cans for retail distribution. It usually have five-vessel brewhouse—mash tun,Mash Cooker, lauter tun(or mash filter), boiling kettle, and whirlpool tun—capable of producing 1 to 7 batches per day with consistency and efficiency. To meet the demands of diverse beer styles and varying fermentation cycles, the system can be paired with fermenters of 15000L, 30,000L, or 100,000L capacity.
The system typically includes:Automatic control system,Malt milling system,CIP (Clean-in-Place) system,Glycol cooling system,Steam heating system,Compressed air system,RO water supply system.
| Capacity / batch | 15000L | 15000L | 15000L |
| Brewing batch / day | 2 | 4 | 6 |
| Brewhouse specification | 5 vessels | 5 vessels | 5 vessels |
| Fermenters specification | 15000L*8
30000L*4 As design |
15000L*8
30000L*4 As design |
50000L*10
30000L*4 10000L*4 As design |

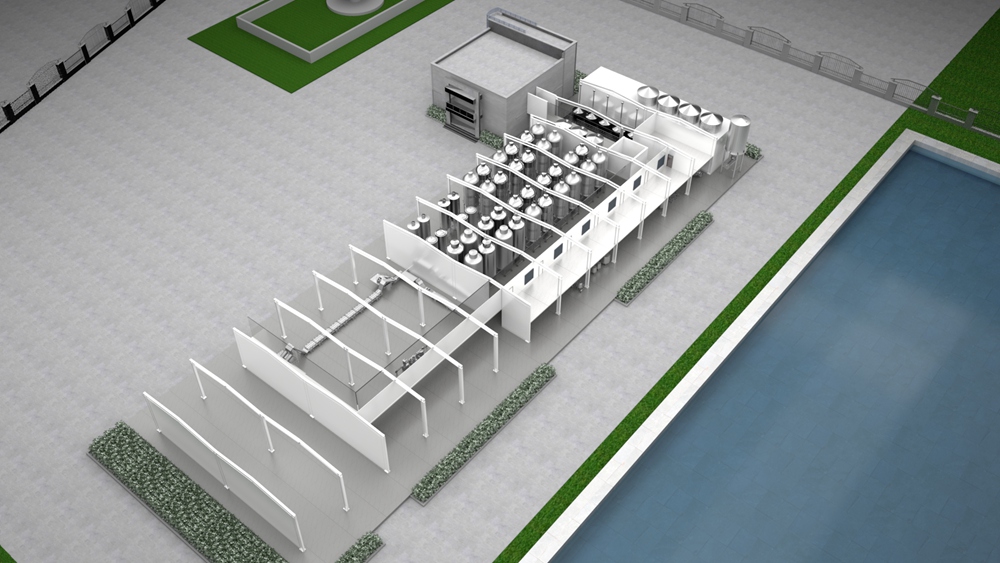

Layout and Process
Tiantai designs the layout according to your site and conducts beer process design to improve site utilization and save energy for you.
Ingredients Storage System
Pallets *8-10 sets
Malt Milling System
Dry mills *1 unit

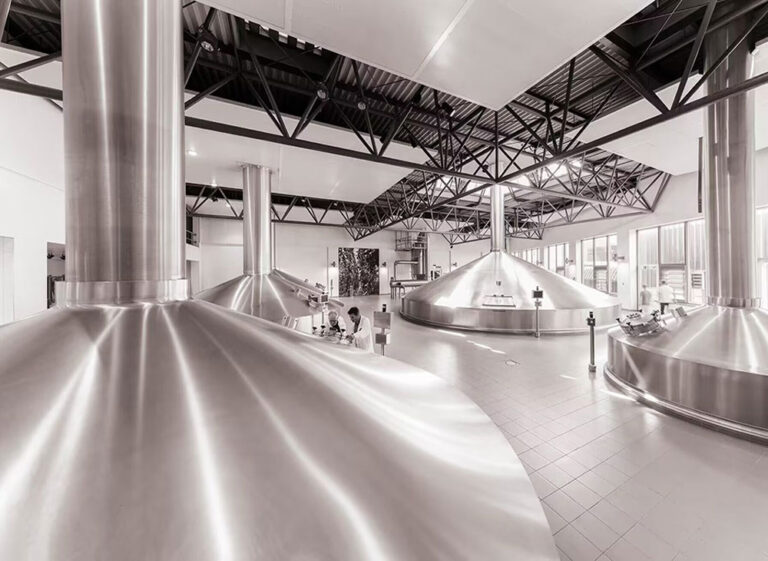

Brewhouse System
- Mash tun *1 unit
- Lauter tun *1 unit
- Brew kettle *1 unit
- Whirlpool tank *1 unit
- Plate and frame heat exchanger *1 unit
- Wort aeration system *1 set
- Yeast pitching system *1 set
- Supporting pumps, valves, sanitary stainless steel pipes, various sensors, operating platforms, etc.
Fermentation System
- 20HL fermenter *12 units
- 40HL fermenter *14 units
- Supporting pumps, valves, sanitary stainless steel pipes, various sensors, operating platforms, etc.
Filtration System
– Kieselguhr adding tank *1 unit
– Front buffer tank *1 unit
– Kieselguhr mixing tank *1 unit
– Candle filter *1 unit
– Rear buffer tank *1 unit
– Bag trap *1 unit
– Other adding systems are equipped according to the process
– Supporting pumps, valves, sanitary stainless steel pipes, various sensors, operating platforms, etc.
Maturation and Conditioning
– 40HL bright beer tank *1 unit
– Supporting pumps, valves, sanitary stainless steel pipes, various sensors, operating platforms, etc.
Pasteurization System
– Flash pasteurizer *1 unit
– Buffer tank *1 unit
– Supporting pumps, valves, sanitary stainless steel pipes, various sensors, operating platforms, etc.
Control System
PLC cabinet *1 set
CIP System
– Hot alkali tank *1 unit
– Hot water tank (sterile water tank) *1 unit
– Supporting pumps, valves, sanitary stainless steel pipes, various sensors, etc.
Hot Water Supply
– Hot liquor tank *1unit
– Supporting pumps, valves, sanitary stainless steel pipes, various sensors, etc.
Cold Water Supply
– Cold liquor tank *1 unit
– Supporting pumps, valves, sanitary stainless steel pipes, various sensors, etc.
Brewing Water Supply
– Brewing water tank *1 unit
– Supporting pumps, valves, sanitary stainless steel pipes, various sensors, etc.
Refrigeration System
– Chiller *1 unit
– Glycol water tank *1 unit
– Supporting pumps, valves, sanitary stainless steel pipes, various sensors, etc.
Reverse Osmosis System
– Raw water tank *1 unit
– RO water treatment machine *1 unit
– Supporting pumps, valves, sanitary stainless steel pipes, various sensors, etc.
Steam Supply System
– Steam boiler *1 unit
– Distributor *several set
– Steam pipes, valves, etc
Compressed Air Supply System
– Oil-free air compressors *2 sets
– Air buffer tank *1 sets
– Air dryer *1 sets
– Several filters
– Supporting pumps, valves, etc.
Electricity Supply System
– Power cables
– Signal communication cables
– Cable bridge
– Bridge bracket
– Conduit
Filling System (bottle)
– Depalletizer *1 set
– Rinsing machine *1 unit
– Filling machine *1 unit
– Capper machine *1 unit
– Tunnel pasteurizer *1 unit
– Drying Machine *1 unit
– Labelling Machine *1 unit
– Inspection Machine *1 unit
– Packaging Line *1 set
– Palletizer *1 set
