| General specification for 1800L brewery equipment | ||||
| No. | Name | Components | Capacity | Specification |
| 1 | Grain Milling Unit | Rolling Miller | 500~800kg/hr | Double roller |
| Power:3Kw | ||||
| Noise:45±3db | ||||
| 2 | Brewhouse Unit | Mash/Lauter tun | 1800L (total 2250L) | Side mounted grain outdoor with grain chute |
| Laser cutting V-wire False Bottom | ||||
| Kettle/Whirlpool Tun | 1800L (total 2340L) | Steam heating | ||
| Tangential whirlpool inlet | ||||
| Sanitary leveling sight glass | ||||
| Hot water tank | 1800L (total 2160L) | Sanitary leveling sight glass | ||
| Yeast feeder | 30L | Tri clamp aeration port with ball valve | ||
| Heat exchanger | 20M2(Effective area) | Completely 304 SS Corrugated plates | ||
| Centrifugal pump | 5M3x2PCS | ABB, Sanitary SUS304, VFD control | ||
| Pipe and fittings | As design | completely SS304, Work Platform is included | ||
| 3 | Fermentation unit | Fermenter | 3600L(total 4500L) | Dimple cooling jacket on cone and bottom |
| Side manway | ||||
| Tri clamp CIP ball | ||||
| 60 degree cone bottom | ||||
| Perlick style full sanitary sampling valve | ||||
| Carbonation port and level tube for special request | ||||
| 4 | Filtration unit(optional) | Kieselguhr Filter | 1000kg/hr | Power: 1.2kw |
| Filter Area: 1.1M2 | ||||
| SUS304 | ||||
| 5 | Bright beer tank | Bright beer tank | 3600L(total 4320L) | Dimple cooling jacket on cone and bottom |
| Level tube for checking | ||||
| Tri clamp CIP ball | ||||
| Side manway | ||||
| Perlick style full sanitary sampling valve | ||||
| Carbonation port with tri clmap carbonation stone | ||||
| 6 | Glycol Chilling Unit | Glycol Water Tank | 3500L(total 4025L) | Insulated conical top and sloped bottom |
| Chiller | 8HPx2PCS | Cooling Capacity: 15480Kcal/8HP | ||
| Installed Power:7.8kw | ||||
| Refrigerant: Freon R404A ,R410A | ||||
| Noise:70-80db | ||||
| Coperland compressor | ||||
| PVC pipe | As designed | Solenoid valves for glycol inlet to tanks are included | ||
| Glycol water pump | 3M3 | Sanitary SUS304, VFD control | ||
| 7 | Control unit | Brewing and fermetation process Controlling | Floor type | PLC control with touch screen for special |
| PC or mobile remote control for special request | ||||
| 8 | CIP | Caustic Tank | 200L | electric heating element inside, With bimetal thermometer |
| Sterilization Tank | 200L | H2O2 | ||
| Pump | 3M3 | VFD control | ||
| 9 | Keg cleaning | Double Station Keg Rinser | 40-60kegs/hr | Heating: Electric, Power: 15kw(steam for optional) |
| 10 | Keg filling | Single Station Keg Filler | 30-40kegs/hr | Input Power: 0.1 kw |
| 11 | Bottling line | 8 heads | 400-500 bottles/hr | Manual |
| 12 | Others | Option | Can be Customized | Auger System |
| Grain Case | ||||
| Grist Hydrator | ||||
| Piping flow panel for Brewhouse | ||||
| Brewhouse Separate PLC Controller | ||||
1800L 15BBL Craft Brewery Equipment
1800L 15BBL Craft Brewery Equipment is one of Tiantai’s most popular models. It is designed for medium to large-scale breweries seeking consistent quality, efficient production, and flexible brewing capabilities.
1800L 15BBL brewhouse includes mash/lauter tun, kettle/whirlpool tun, for 1 to 3 batches brewing per day.
Fermentation vessels can be 15BBL or 30BBL to accommodate various beer styles with different fermentation cycles.
| Capacity / batch | 1800L | 1800L | 1800L |
| Brewing batch / day | 1 | 2 | 3 |
| Brewhouse specification | 2 vessels | 3 vessels | 4 vessels |
| Fermenters specification | 15BBL*4 | 30BBL*6 | 30BBL*8 |
Layout and Process
Tiantai designs the layout according to your site and conducts beer process design to improve site utilization and save energy for you.
Ingredients Storage System
Pallets *8-10 sets
Malt Milling System
Dry mills *1 unit

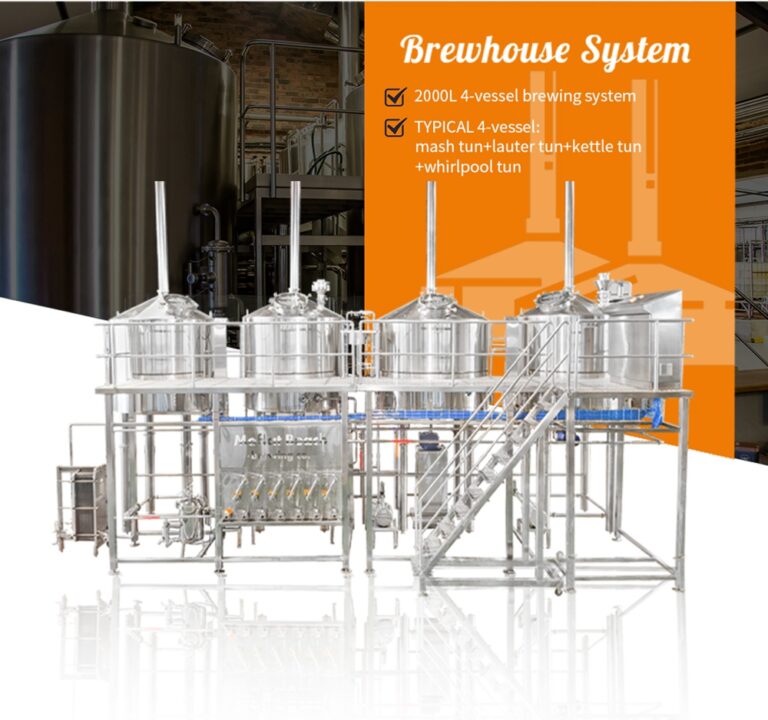

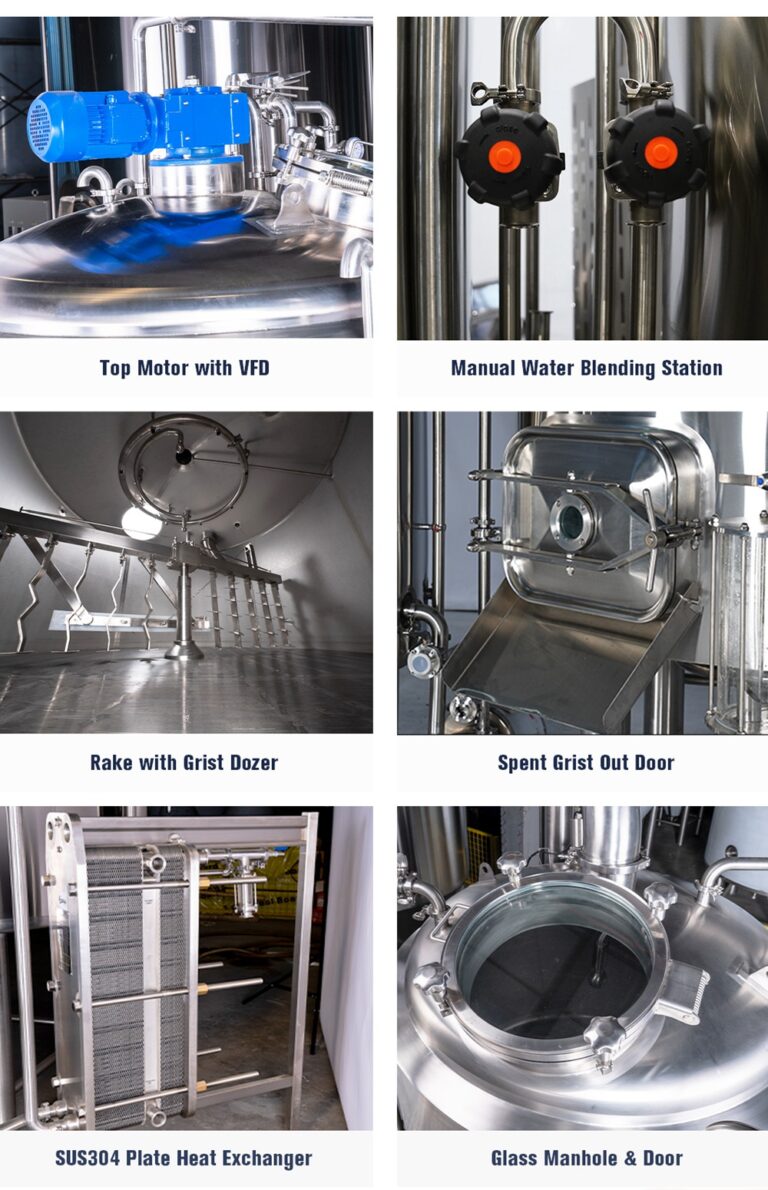

Brewhouse System
- Mash tun *1 unit
- Lauter tun *1 unit
- Brew kettle *1 unit
- Whirlpool tank *1 unit
- Plate and frame heat exchanger *1 unit
- Wort aeration system *1 set
- Yeast pitching system *1 set
- Supporting pumps, valves, sanitary stainless steel pipes, various sensors, operating platforms, etc.
Fermentation System
- 20HL fermenter *12 units
- 40HL fermenter *14 units
- Supporting pumps, valves, sanitary stainless steel pipes, various sensors, operating platforms, etc.
Filtration System
– Kieselguhr adding tank *1 unit
– Front buffer tank *1 unit
– Kieselguhr mixing tank *1 unit
– Candle filter *1 unit
– Rear buffer tank *1 unit
– Bag trap *1 unit
– Other adding systems are equipped according to the process
– Supporting pumps, valves, sanitary stainless steel pipes, various sensors, operating platforms, etc.
Maturation and Conditioning
– 40HL bright beer tank *1 unit
– Supporting pumps, valves, sanitary stainless steel pipes, various sensors, operating platforms, etc.
Pasteurization System
– Flash pasteurizer *1 unit
– Buffer tank *1 unit
– Supporting pumps, valves, sanitary stainless steel pipes, various sensors, operating platforms, etc.
Control System
PLC cabinet *1 set
CIP System
– Hot alkali tank *1 unit
– Hot water tank (sterile water tank) *1 unit
– Supporting pumps, valves, sanitary stainless steel pipes, various sensors, etc.
Hot Water Supply
– Hot liquor tank *1unit
– Supporting pumps, valves, sanitary stainless steel pipes, various sensors, etc.
Cold Water Supply
– Cold liquor tank *1 unit
– Supporting pumps, valves, sanitary stainless steel pipes, various sensors, etc.
Brewing Water Supply
– Brewing water tank *1 unit
– Supporting pumps, valves, sanitary stainless steel pipes, various sensors, etc.
Refrigeration System
– Chiller *1 unit
– Glycol water tank *1 unit
– Supporting pumps, valves, sanitary stainless steel pipes, various sensors, etc.
Reverse Osmosis System
– Raw water tank *1 unit
– RO water treatment machine *1 unit
– Supporting pumps, valves, sanitary stainless steel pipes, various sensors, etc.
Steam Supply System
– Steam boiler *1 unit
– Distributor *several set
– Steam pipes, valves, etc
Compressed Air Supply System
– Oil-free air compressors *2 sets
– Air buffer tank *1 sets
– Air dryer *1 sets
– Several filters
– Supporting pumps, valves, etc.
Electricity Supply System
– Power cables
– Signal communication cables
– Cable bridge
– Bridge bracket
– Conduit
Filling System (bottle)
– Depalletizer *1 set
– Rinsing machine *1 unit
– Filling machine *1 unit
– Capper machine *1 unit
– Tunnel pasteurizer *1 unit
– Drying Machine *1 unit
– Labelling Machine *1 unit
– Inspection Machine *1 unit
– Packaging Line *1 set
– Palletizer *1 set
