Cold coffee, especially cold brew has become one of the fastest-growing beverage categories worldwide. From cafés to large scale beverage companies, manufacturers are introducing ready-to-drink (RTD) cold brew cans, bottled cold coffee, nitro cold brew, and flavored cold brew beverages. As consumer demand rises, businesses are shifting from small improvised brewing setups to professional cold coffee brewing equipment that delivers consistency, safety, scalability, and quality.
1BBL Small Cold Coffee Extraction System including:
| No. | Item | Specifications |
| 1 | 1BBL Extraction Tun * 1set | With cooing jackets, with rake, with false bottom. |
| With automatic temperature control | ||
| 2 | Coffee extraction pump 3m³/hr * 1set | With VFD control to adjust the pump speed |
| 3 | Work platform | Stainless steel materials, for easy operation |
| 4 | 10L Glass Grant | As buffer tank avoiding negative pressure in Extraction Tun |
| 4 | 1BBL Cold Coffee Fermenter * 1set | Conical 60°bottom, |
| 2bar working pressure, | ||
| Cooling jackets, | ||
| Top side manhole, | ||
| Sample Valve, | ||
| Carbonation stone for nitro, | ||
| Pressure and safety valve. | ||
| 5 | Cooling system | 3HP Glycol water chiller, |
| Stainless steel pipes, and fittings, | ||
| Glycol water solenoid valve DC24V. | ||
| 6 | Filtration system | 10L Strainer Filter, |
| Stainless steel materials. | ||
| 7 | Storage and blending tank 1BBL * 1set | Dished bottom, |
| 2bar working pressure, | ||
| Cooling jackets, | ||
| Top side manhole, | ||
| Sample Valve, | ||
| Carbonation stone for nitro, | ||
| Pressure and safety valve. | ||

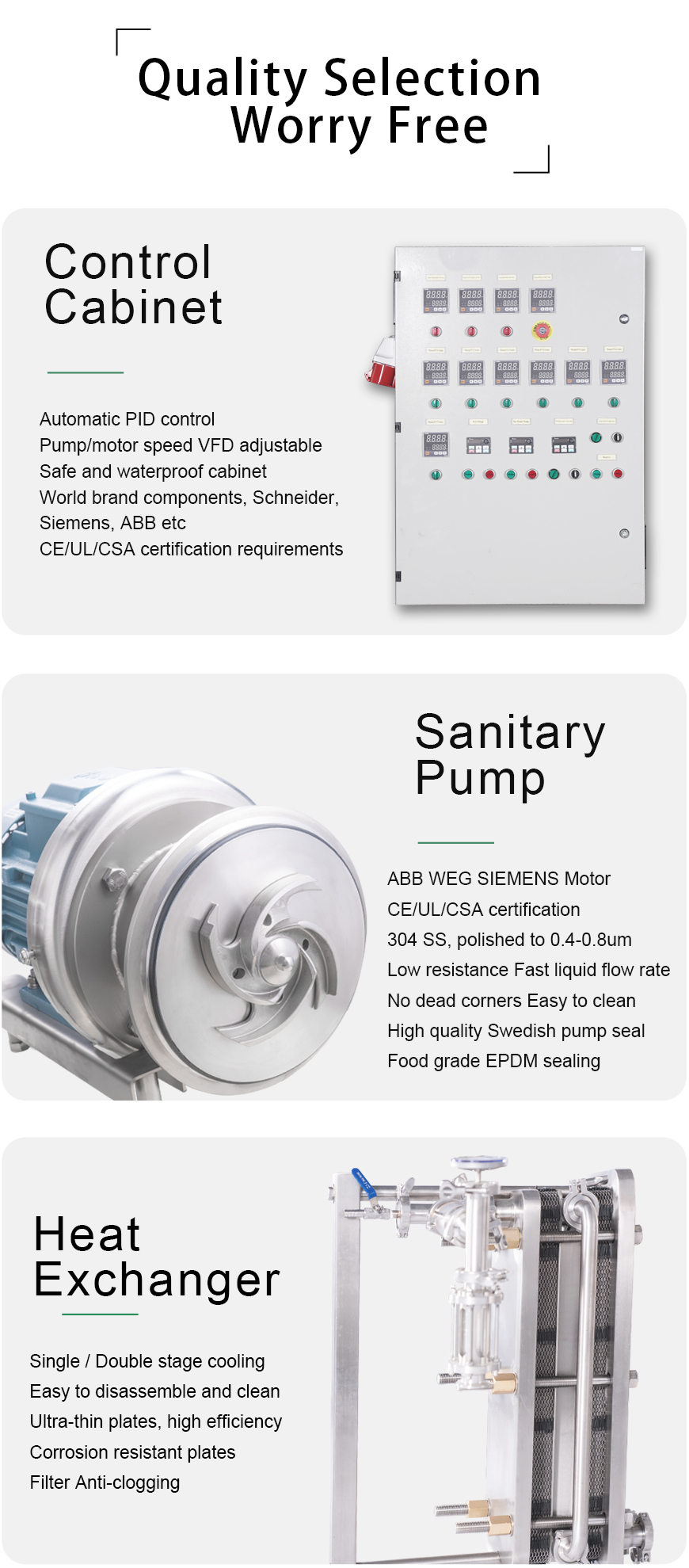

| 8 | Control Cabinet * 1set | Electrical Parts with LS,Schneider, ABB,MW, Omron etc with CE/UL certifications |
| 9 | Portable CIP Pump | Pump Capacity: 3m³/hr |
| VFD control to adjust the pump speed | ||
| 10 | Packaging line | Bottling and capping machine for option, |
| Canning machine for option. | ||
| 11 | Utility Equipment | RO water treatment machine for option, |
| Brewing water tank for option. |
With a Tiantai system, you gain: Consistency－Efficiency－Scalable capacity－Long-term operational savings－Food-grade safety compliance.
Whether you want to produce cold brew concentrate, RTD bottled coffee, or nitro cold brew on tap, Tiantai offers the equipment and process design to help you grow your market.
