2000L/20HL Microbrewery System

TT0026_2500L_stainless_steel_auto_four_vessels_steam_heated_brewhouse_brewery_equipment_20036

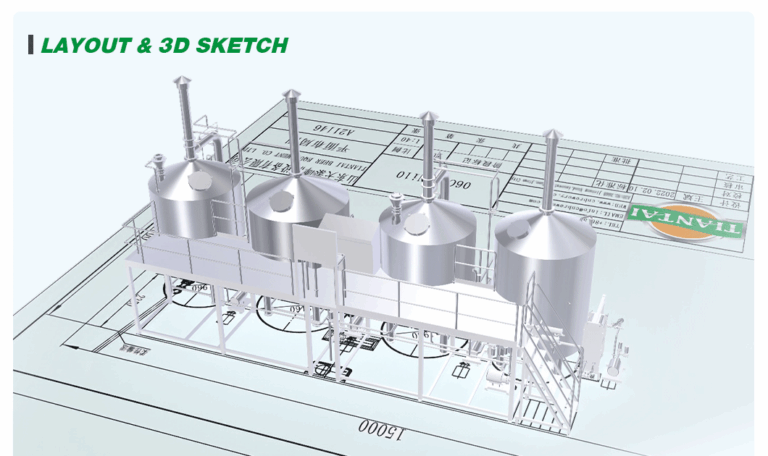

04 tiantai 3-vessel brewhouse layout

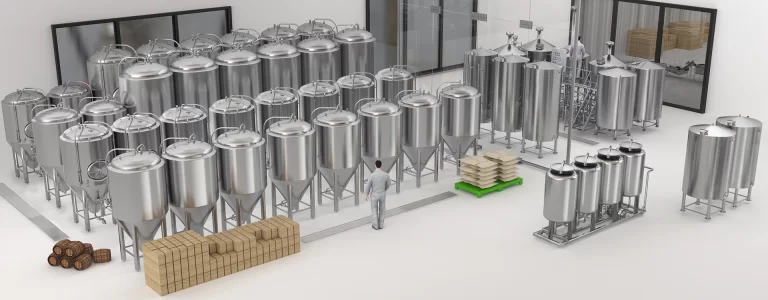

4000L Brewery equipment

The 2000L Micro Brewery System is designed for micro breweries, where the finished beer is packaged in bottles or cans for retail distribution. It usually have three or four-vessel brewhouse—mash tun, lauter tun, boiling kettle, and whirlpool tun—capable of producing 1 to 3 batches per day with consistency and efficiency. To meet the demands of diverse beer styles and varying fermentation cycles, the system can be paired with fermenters of 2000L, 4000L capacity.

Capacity / batch 2000L 2000L 2000L
Brewing batch / day 1 2 3
Brewhouse specification 2 vessels 3 vessels 4 vessels
Fermenters specification 2000Lx6

As design

 2000L*4

4000L*2

 2000L*4

4000L*4

As design
Arrange consultation

Layout and Process

Tiantai designs the layout according to your site and conducts beer process design to improve site utilization and save energy for you.

5000L Brewhouse
Ingredients Storage System

Pallets *8-10 sets

Malt Milling System

Dry mills *1 unit

Brewhouse System
  • Mash tun *1 unit
  • Lauter tun *1 unit
  • Brew kettle *1 unit
  • Whirlpool tank *1 unit
  • Plate and frame heat exchanger *1 unit
  • Wort aeration system *1 set
  • Yeast pitching system *1 set
  • Supporting pumps, valves, sanitary stainless steel pipes, various sensors, operating platforms, etc.

Fermentation System
  • 20HL fermenter *12 units
  • 40HL fermenter *14 units
  • Supporting pumps, valves, sanitary stainless steel pipes, various sensors, operating platforms, etc.

Filtration System

– Kieselguhr adding tank *1 unit
– Front buffer tank *1 unit
– Kieselguhr mixing tank *1 unit
– Candle filter *1 unit
– Rear buffer tank *1 unit
– Bag trap *1 unit
– Other adding systems are equipped according to the process
– Supporting pumps, valves, sanitary stainless steel pipes, various sensors, operating platforms, etc.

Maturation and Conditioning

– 40HL bright beer tank *1 unit
– Supporting pumps, valves, sanitary stainless steel pipes, various sensors, operating platforms, etc.

Pasteurization System

– Flash pasteurizer *1 unit
– Buffer tank *1 unit
– Supporting pumps, valves, sanitary stainless steel pipes, various sensors, operating platforms, etc.

Control System

PLC cabinet *1 set

CIP System

– Hot alkali tank *1 unit
– Hot water tank (sterile water tank) *1 unit
– Supporting pumps, valves, sanitary stainless steel pipes, various sensors, etc.

Hot Water Supply

– Hot liquor tank *1unit
– Supporting pumps, valves, sanitary stainless steel pipes, various sensors, etc.

Cold Water Supply

– Cold liquor tank *1 unit
– Supporting pumps, valves, sanitary stainless steel pipes, various sensors, etc.

Brewing Water Supply

– Brewing water tank *1 unit
– Supporting pumps, valves, sanitary stainless steel pipes, various sensors, etc.

Refrigeration System

– Chiller *1 unit
– Glycol water tank *1 unit
– Supporting pumps, valves, sanitary stainless steel pipes, various sensors, etc.

Reverse Osmosis System

– Raw water tank *1 unit
– RO water treatment machine *1 unit
– Supporting pumps, valves, sanitary stainless steel pipes, various sensors, etc.

Steam Supply System

– Steam boiler *1 unit
– Distributor *several set
– Steam pipes, valves, etc

Compressed Air Supply System

– Oil-free air compressors *2 sets
– Air buffer tank *1 sets
– Air dryer *1 sets
– Several filters
– Supporting pumps, valves, etc.

Electricity Supply System

– Power cables
– Signal communication cables
– Cable bridge
– Bridge bracket
– Conduit

Filling System (bottle)

– Depalletizer *1 set
– Rinsing machine *1 unit
– Filling machine *1 unit
– Capper machine *1 unit
– Tunnel pasteurizer *1 unit
– Drying Machine *1 unit
– Labelling Machine *1 unit
– Inspection Machine *1 unit
– Packaging Line *1 set
– Palletizer *1 set

The brewery can be SUS304 or copper cladding in material, steam, electric or direct fire heating, two/three or four vessel brewhouse.

The system contains milling, brewhouse, fermenter, bright beer tank, control unit, Glycol cooling Unit and CIP Cleaning System, as well as kegging and Bottling system.

General specification for 2000L brewery equipment
No. Name Components Capacity Specification
1 Grain Milling Unit Rolling Miller 500~800kg/hr Double roller
Power:1.5Kw
Noise:45±3db
2 Brewhouse Unit Mash/Lauter tun 2000L (total 2500L) Side mounted grain outdoor with grain chute
Laser cutting V-wire False Bottom
Kettle/Whirlpool Tun 2000L (total 2500L) Steam heating
Tangential whirlpool inlet
Sanitary leveling sight glass
Hot water tank 2000L (total 2500L) Sanitary leveling sight glass
Yeast feeder 30L Tri clamp aeration port with ball valve
Heat exchanger 20M2(Effective area) Completely 304 SS Corrugated plates
YUY pump 5M3x2PCS ABB, Sanitary SUS304, VFD control
Pipe and fittings As design completely SS304, Work Platform is included
3 Fermentation unit Fermenter 4000L(total 5000L) Dimple cooling jacket on cone and bottom
Side manway
Tri clamp CIP ball
60 degree cone bottom
Perlick style full sanitary sampling valve
Carbonation port and level tube for special request
4 Filtration unit(optional) Kieselguhr Filter  1000kg/hr Power: 2.5kw
Filter Area: 2.4M2
SUS304
5 Bright beer tank Bright beer tank 2000L (total 2500L) Dimple cooling jacket on cone and bottom
Level tube for checking
Tri clamp CIP ball
Side manway
Perlick style full sanitary sampling valve
Carbonation port with tri clmap carbonation stone
6 Glycol Chilling Unit Glycol Water Tank 4000L(total 4500L) Insulated conical top and sloped bottom
Chiller 8HPx2PCS Cooling Capacity: 15400Kcal/8HP
Installed Power:7.8kw
Refrigerant: Freon R404A ,R410A
Noise:70-80db
Coperland compressor
PVC pipe As designed Solenoid valves for glycol inlet to tanks are included
Glycol water pump 5M3x2PCS Sanitary SUS304, VFD control
7 Control unit Brewing and fermetation process Controlling Floor type PLC control with touch screen for special
PC or  mobile remote control for special request
8 CIP Caustic Tank 200L electric heating element inside, With bimetal thermometer
Sterilization Tank 200L H2O2
Pump 3M3 YUY, VFD control
9 Keg cleaning Double Station Keg Rinser 40-60kegs/hr Heating: Electric, Power: 15kw(steam  for optional)
10 Keg filling Single Station Keg Filler 30-40kegs/hr Input Power: 0.1 kw
11 Bottling line 8 heads 400-500 bottles/hr Manual
12 Others Option Can be Customized Auger System
Grain Case
Grist Hydrator
Piping flow panel for Brewhouse
Brewhouse Separate PLC Controller
