TIANTAI 400L two-vessel brewhouse beer brewing system is specially designed for brewpubs, taproom, restaurants and small nano breweries that want to produce fresh craft beer on-site. It integrates mash, lauter, boiling, and whirlpool functions into two compact vessels, offering both efficiency and flexibility. With its small footprint, user-friendly design, and high-quality stainless steel construction, this system allows brewers to create a wide range of beer styles while ensuring consistent quality. Perfect for daily brewing in hospitality environments, it combines professional performance with easy operation and cleaning.

Capacity : 400L 400L 400L
Brewing batch: 1 2 3
Brewhouse: 2-vessel, Combined 3-vessel 3-vessel 4-vessel
Fermenters : 400Lx4 400L*4, 800L*2 400L*4, 1200L*4
Arrange consultation

Layout and Process

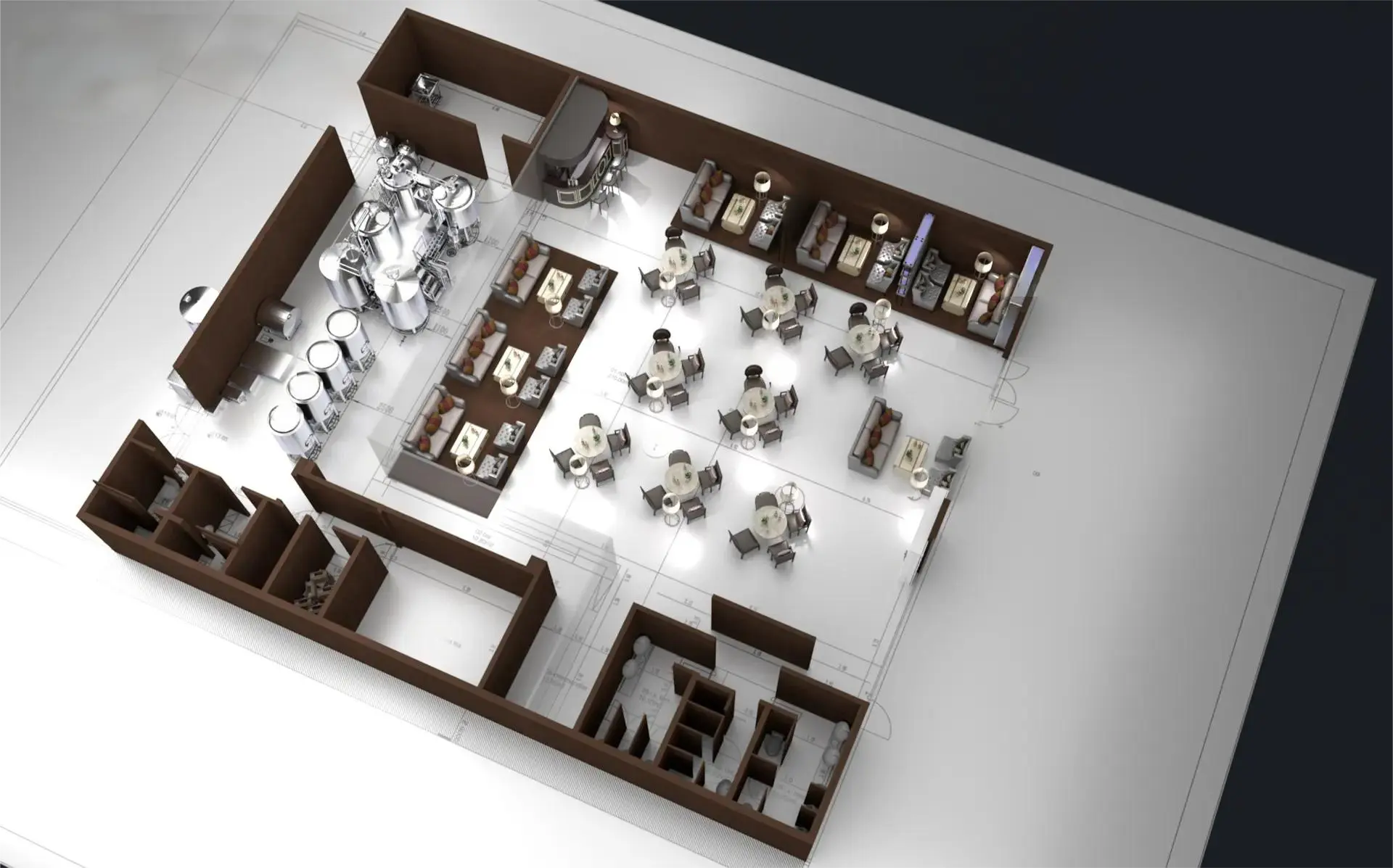

Tiantai designs the layout according to your site and conducts beer process design to improve site utilization and save energy for you.

Ingredients Storage System

Pallets *8-10 sets

Malt Milling System

Dry mills *1 unit

Brewhouse System
  • Mash tun *1 unit
  • Lauter tun *1 unit
  • Brew kettle *1 unit
  • Whirlpool tank *1 unit
  • Plate and frame heat exchanger *1 unit
  • Wort aeration system *1 set
  • Yeast pitching system *1 set
  • Supporting pumps, valves, sanitary stainless steel pipes, various sensors, operating platforms, etc.

Fermentation System
  • 20HL fermenter *12 units
  • 40HL fermenter *14 units
  • Supporting pumps, valves, sanitary stainless steel pipes, various sensors, operating platforms, etc.

Filtration System

– Kieselguhr adding tank *1 unit
– Front buffer tank *1 unit
– Kieselguhr mixing tank *1 unit
– Candle filter *1 unit
– Rear buffer tank *1 unit
– Bag trap *1 unit
– Other adding systems are equipped according to the process
– Supporting pumps, valves, sanitary stainless steel pipes, various sensors, operating platforms, etc.

Maturation and Conditioning

– 40HL bright beer tank *1 unit
– Supporting pumps, valves, sanitary stainless steel pipes, various sensors, operating platforms, etc.

Pasteurization System

– Flash pasteurizer *1 unit
– Buffer tank *1 unit
– Supporting pumps, valves, sanitary stainless steel pipes, various sensors, operating platforms, etc.

Control System

PLC cabinet *1 set

CIP System

– Hot alkali tank *1 unit
– Hot water tank (sterile water tank) *1 unit
– Supporting pumps, valves, sanitary stainless steel pipes, various sensors, etc.

Hot Water Supply

– Hot liquor tank *1unit
– Supporting pumps, valves, sanitary stainless steel pipes, various sensors, etc.

Cold Water Supply

– Cold liquor tank *1 unit
– Supporting pumps, valves, sanitary stainless steel pipes, various sensors, etc.

Brewing Water Supply

– Brewing water tank *1 unit
– Supporting pumps, valves, sanitary stainless steel pipes, various sensors, etc.

Refrigeration System

– Chiller *1 unit
– Glycol water tank *1 unit
– Supporting pumps, valves, sanitary stainless steel pipes, various sensors, etc.

Reverse Osmosis System

– Raw water tank *1 unit
– RO water treatment machine *1 unit
– Supporting pumps, valves, sanitary stainless steel pipes, various sensors, etc.

Steam Supply System

– Steam boiler *1 unit
– Distributor *several set
– Steam pipes, valves, etc

Compressed Air Supply System

– Oil-free air compressors *2 sets
– Air buffer tank *1 sets
– Air dryer *1 sets
– Several filters
– Supporting pumps, valves, etc.

Electricity Supply System

– Power cables
– Signal communication cables
– Cable bridge
– Bridge bracket
– Conduit

Filling System (bottle)

– Depalletizer *1 set
– Rinsing machine *1 unit
– Filling machine *1 unit
– Capper machine *1 unit
– Tunnel pasteurizer *1 unit
– Drying Machine *1 unit
– Labelling Machine *1 unit
– Inspection Machine *1 unit
– Packaging Line *1 set
– Palletizer *1 set

General specification for 400L brewery equipment
No. Name Components Capacity Specification
1 Grain Milling Unit Rolling Miller 80~150kg/hr Double roller
Power:1.1Kw
Noise:45±3db
2 Brewhouse Unit Mash/Lauter tun 400L (total 500L) Side mounted grain outdoor with grain chute
Laser cutting V-wire False Bottom
Kettle/Whirlpool Tun 400L (total 520L) Electric heating; Power: 24kw
Tangential whirlpool inlet
Sanitary leveling sight glass
Yeast feeder 10L Tri clamp aeration port with ball valve
Heat exchanger 4M2(Effective area) Completely 304 SS Corrugated plates
Pump 3M3 ABB, Sanitary SUS304, VFD control
Pipe and fittings As design completely SS304
3 Fermentation unit Fermenter 400L or 800L for option Dimple cooling jacket on cone and bottom
Top manway
60 degree cone bottom
Perlick style full sanitary sampling valve
Carbonation port and level tube for special request
4 Filtration unit(optional) Plate-frame Filter Max Flow: 1.5T/h Power: 1.1kw
Cloth type, 10 layer
Different material will be different for the flow
5 Bright beer tank Bright beer tank 400L or 800L for option Dimple cooling jacket on cone and bottom
Level tube for checking
Top manway
Perlick style full sanitary sampling valve
Carbonation port with tri clmap carbonation stone
6 Glycol Chilling Unit Glycol Water Tank 800L Insulated conical top and sloped bottom
Chiller 3HPx2PCS Cooling Capacity: 6600Kcal/3HP
Installed Power:3.3kw
Refrigerant: Freon R404A ,R410A
Noise:70-80db
Coperland compressor
PPR pipe As designed Solenoid valves for glycol inlet to tanks are included
Glycol water pump 3M3 Sanitary SUS304, VFD control
7 Control unit Brewing and fermetation process Controlling Floor type PLC control with touch screen for special
PC or  mobile remote control for special request
8 CIP CIP pump with VFD 3M3 Portable cart, VFD control
9 Keg cleaning 2 head  20-30kegs/hr Rinsing Capacity: 20-30kegs/hr
10 Keg filling A coupler Manual Heating: Electric, Power: 15kw
11 Bottling line 4 head 160-180 bottles/hr Manual
12 Others Option Can be Customized Auger System
Grain Case
Grist Hydrator
Piping flow panel for Brewhouse
Brewhouse Separate PLC Controller

1800L Fermentation Tank

600L Bright Beer Tank
