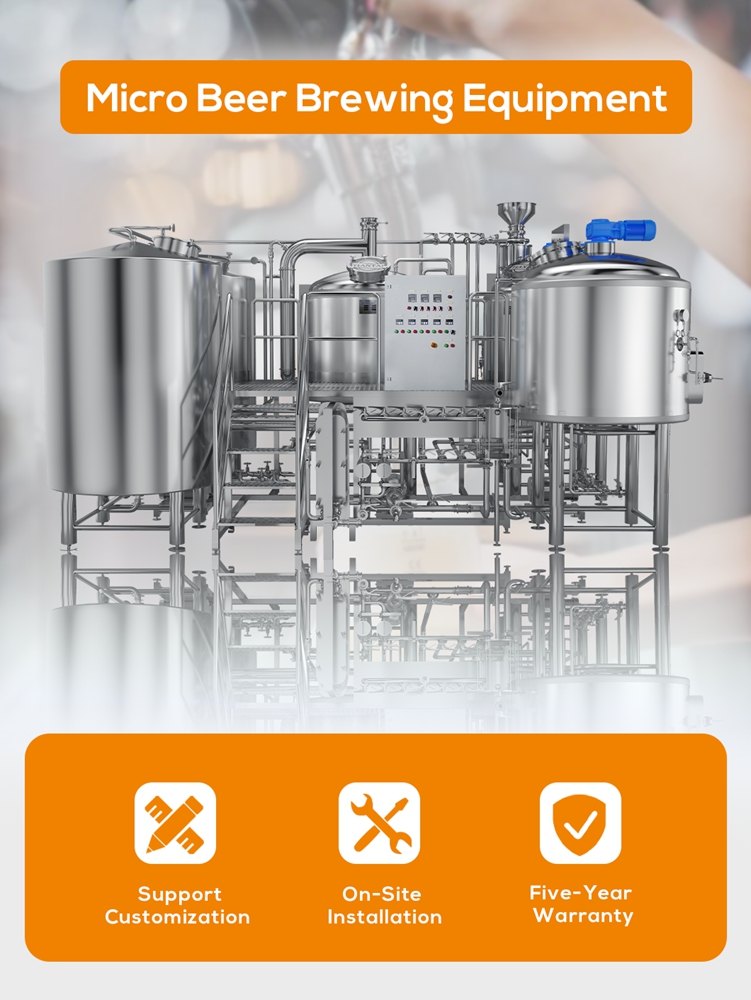

1800L Micro brewery Brewing System

TT0032_1200L_stainless_steel_manual_two_vessels_steam_heated_brewhouse_brewery_equipment
Sparging ring
heat exchanger
Pump

TIANTAI 1800L Micro Brewery System is designed for micro breweries, where the finished beer is packaged in bottles or cans for retail distribution. It usually have 2-vessel, 3-vessel or 4-vessel brewhouse—Mash tun, Lauter tun, Wort boiling kettle, and Wort whirlpool tun—capable of producing 1 to 3 batches per day with consistency and efficiency. To meet the demands of diverse beer styles and varying fermentation cycles, the system can be paired with fermenters of 1800L, 3500L, 5400L, 7200L capacity.

Capacity： 1800L 1800L 1800L
Brewing batch/day： 1 2-3 3-4
Brewhouse： 2-vessel 3-vessel 4-vessel
Fermenters： 1800Lx4 1800L*4,
3600L*2		 1800L*4,
5400L*4
Arrange consultation

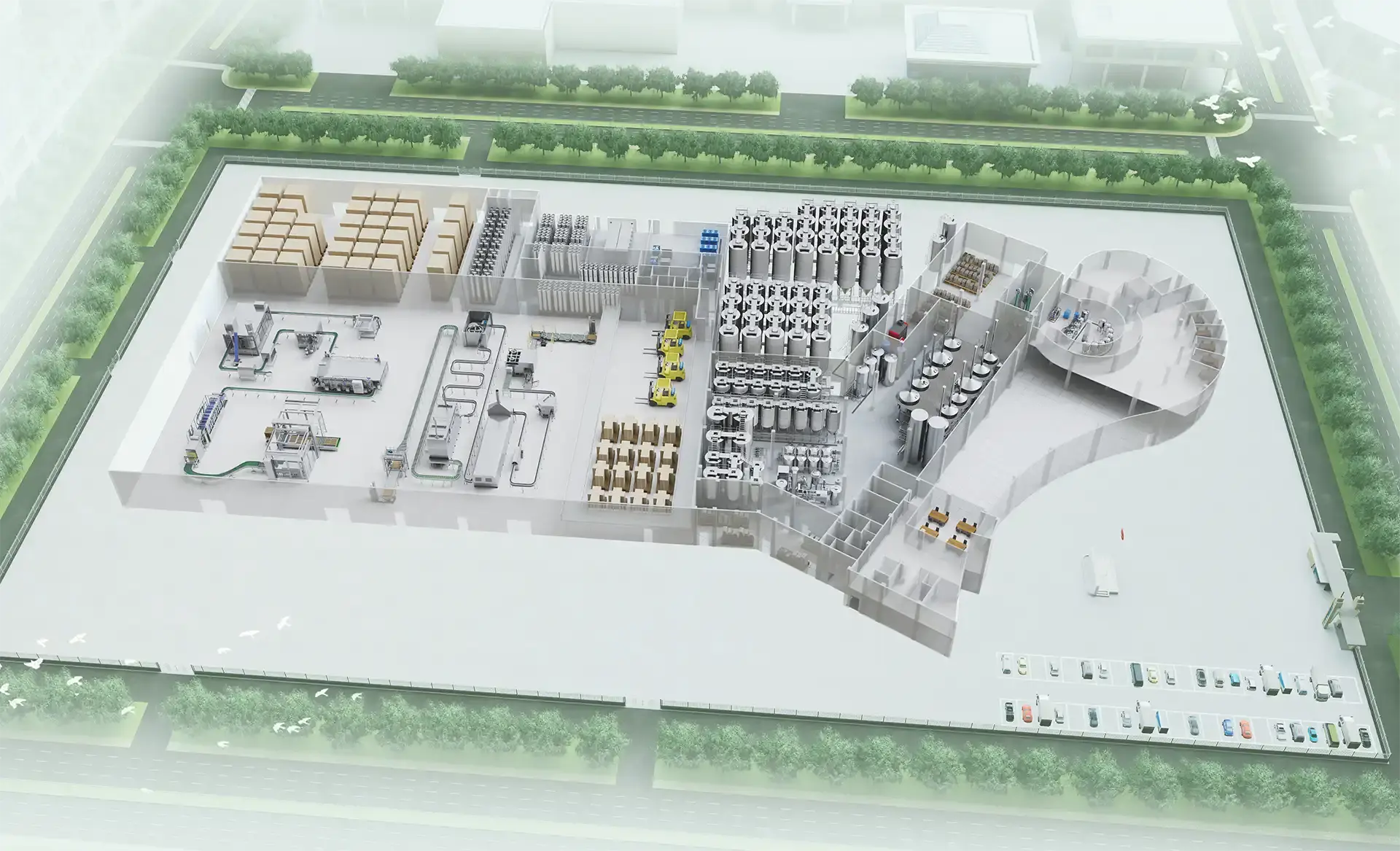

Layout and Process

Tiantai designs the layout according to your site and conducts beer process design to improve site utilization and save energy for you.

Ingredients Storage System

Pallets *8-10 sets

Malt Milling System

Dry mills *1 unit

Brewhouse System
  • Mash tun *1 unit
  • Lauter tun *1 unit
  • Brew kettle *1 unit
  • Whirlpool tank *1 unit
  • Plate and frame heat exchanger *1 unit
  • Wort aeration system *1 set
  • Yeast pitching system *1 set
  • Supporting pumps, valves, sanitary stainless steel pipes, various sensors, operating platforms, etc.

Fermentation System
  • 20HL fermenter *12 units
  • 40HL fermenter *14 units
  • Supporting pumps, valves, sanitary stainless steel pipes, various sensors, operating platforms, etc.

Filtration System

– Kieselguhr adding tank *1 unit
– Front buffer tank *1 unit
– Kieselguhr mixing tank *1 unit
– Candle filter *1 unit
– Rear buffer tank *1 unit
– Bag trap *1 unit
– Other adding systems are equipped according to the process
– Supporting pumps, valves, sanitary stainless steel pipes, various sensors, operating platforms, etc.

Maturation and Conditioning

– 40HL bright beer tank *1 unit
– Supporting pumps, valves, sanitary stainless steel pipes, various sensors, operating platforms, etc.

Pasteurization System

– Flash pasteurizer *1 unit
– Buffer tank *1 unit
– Supporting pumps, valves, sanitary stainless steel pipes, various sensors, operating platforms, etc.

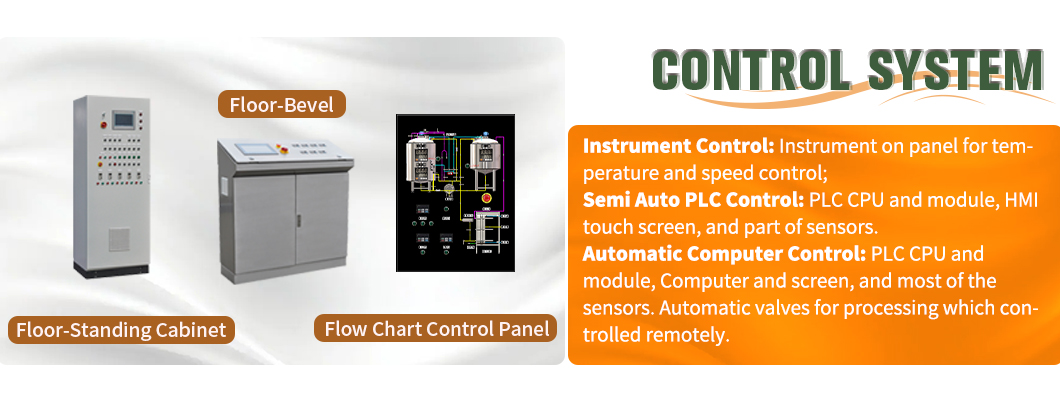

Control System

PLC cabinet *1 set

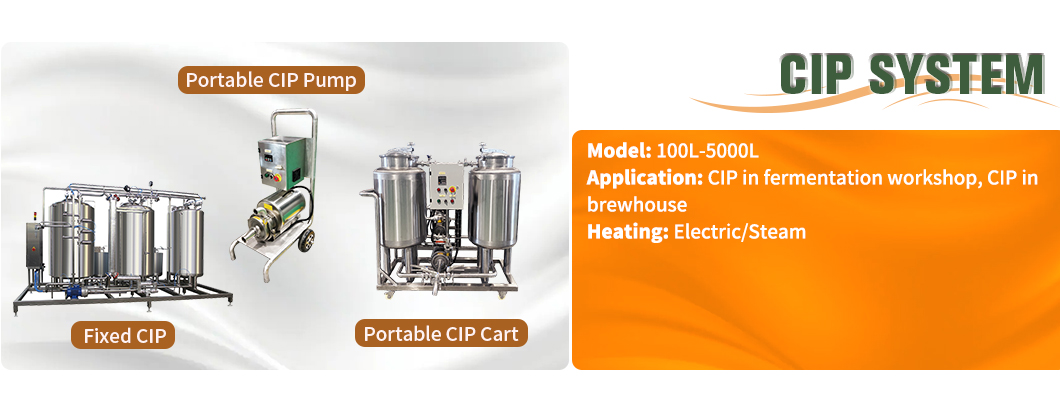

CIP System

– Hot alkali tank *1 unit
– Hot water tank (sterile water tank) *1 unit
– Supporting pumps, valves, sanitary stainless steel pipes, various sensors, etc.

Hot Water Supply

– Hot liquor tank *1unit
– Supporting pumps, valves, sanitary stainless steel pipes, various sensors, etc.

Cold Water Supply

– Cold liquor tank *1 unit
– Supporting pumps, valves, sanitary stainless steel pipes, various sensors, etc.

Brewing Water Supply

– Brewing water tank *1 unit
– Supporting pumps, valves, sanitary stainless steel pipes, various sensors, etc.

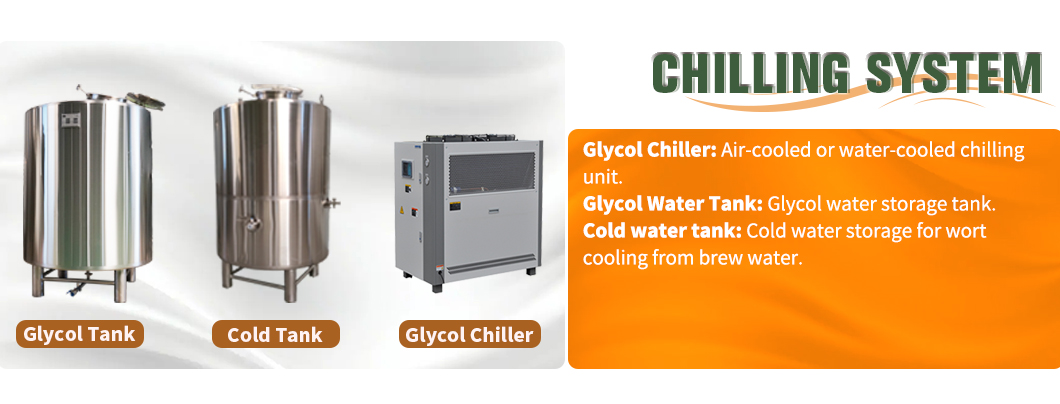

Refrigeration System

– Chiller *1 unit
– Glycol water tank *1 unit
– Supporting pumps, valves, sanitary stainless steel pipes, various sensors, etc.

Reverse Osmosis System

– Raw water tank *1 unit
– RO water treatment machine *1 unit
– Supporting pumps, valves, sanitary stainless steel pipes, various sensors, etc.

Steam Supply System

– Steam boiler *1 unit
– Distributor *several set
– Steam pipes, valves, etc

Compressed Air Supply System

– Oil-free air compressors *2 sets
– Air buffer tank *1 sets
– Air dryer *1 sets
– Several filters
– Supporting pumps, valves, etc.

Electricity Supply System

– Power cables
– Signal communication cables
– Cable bridge
– Bridge bracket
– Conduit

Filling System (bottle)

– Depalletizer *1 set
– Rinsing machine *1 unit
– Filling machine *1 unit
– Capper machine *1 unit
– Tunnel pasteurizer *1 unit
– Drying Machine *1 unit
– Labelling Machine *1 unit
– Inspection Machine *1 unit
– Packaging Line *1 set
– Palletizer *1 set

General specification for 1800L brewery equipment
No. Name Components Capacity Specification
1 Grain Milling Unit Rolling Miller 500~800kg/hr Double roller
Power:3Kw
Noise:45±3db
2 Brewhouse Unit Mash/Lauter tun 1800L (total 2250L) Side mounted grain outdoor with grain chute
Laser cutting V-wire False Bottom
Kettle/Whirlpool Tun 1800L (total 2340L) Steam heating
Tangential whirlpool inlet
Sanitary leveling sight glass
Hot water tank 3500L (total 4375L) Sanitary leveling sight glass
Yeast feeder 30L Tri clamp aeration port with ball valve
Heat exchanger 20M2(Effective area) Completely 304 SS Corrugated plates
Sanitary Centrifugal Pump [LYSF] 5M3x2PCS Sanitary SUS304, VFD control
Pipe and fittings As design completely SS304, Work Platform is included

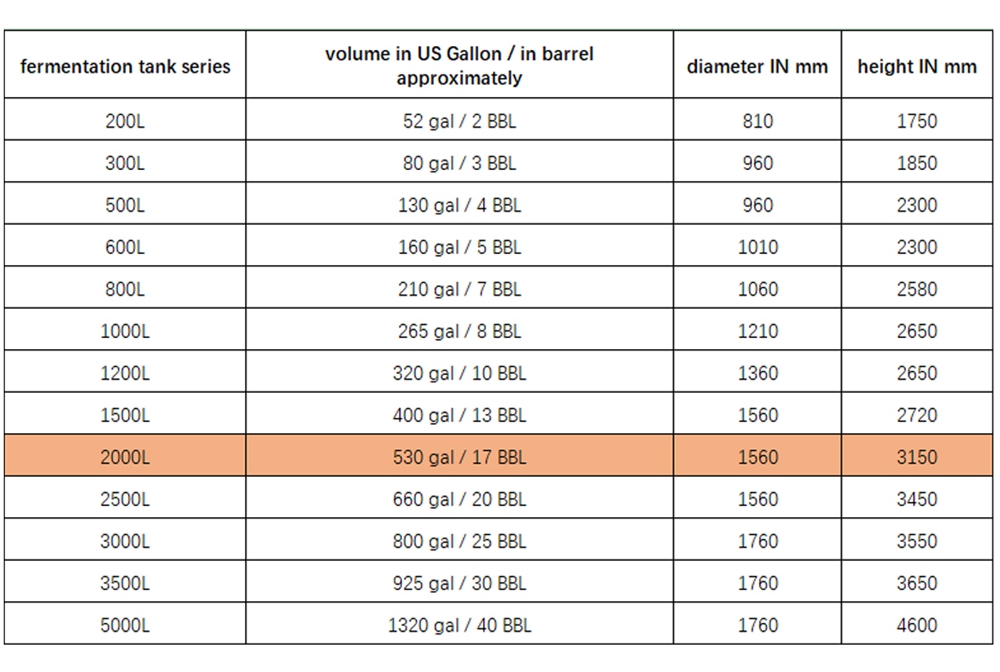

3 Fermentation unit Fermenter 3500L(total 4375L) Dimple cooling jacket on cone and bottom
Side manway
Tri clamp CIP ball
60 degree cone bottom
Perlick style full sanitary sampling valve
Carbonation port and level tube for special request
4 Filtration unit(optional) Kieselguhr Filter  1000kg/hr Power: 1.2kw
Filter Area: 1.1M2
SUS304
5 Bright beer tank Bright beer tank 3500L(total 4375L) Dimple cooling jacket on cone and bottom
Level tube for checking
Tri clamp CIP ball
Side manway
Perlick style full sanitary sampling valve
Carbonation port with tri clmap carbonation stone
6 Glycol Chilling Unit Glycol Water Tank 3500L(total 4025L) Insulated conical top and sloped bottom
Chiller 8HPx2PCS Cooling Capacity:  15480Kcal/8HP
Installed Power:7.8kw
Refrigerant: Freon R404A ,R410A
Noise:70-80db
Coperland compressor
PPR pipe As designed Solenoid valves for glycol inlet to tanks are included
Glycol water pump 3M3 Sanitary SUS304, VFD control
7 Control unit Brewing and fermetation process Controlling Floor type PLC control with touch screen for special
PC or  mobile remote control for special request
8 CIP Caustic Tank 200L electric heating element inside, With bimetal thermometer
Sterilization Tank 200L H2O2
Pump 3M3 Sanitary Centrifugal Pump, VFD control
9 Keg cleaning Semi-Auto 2-Station Keg Rinser 40-60kegs/hr Heating: Electric, Power: 15kw(steam  for optional)
10 Keg filling Semi-Auto 1-Station Keg Filler 30-40kegs/hr Input Power: 0.1 kw
11 Bottling line  8 heads 400-500 bottles/hr Semi-Auto control
12 Others Option Can be Customized Auger System
Grain Case
Grist Hydrator
Piping flow panel for Brewhouse
Brewhouse Separate PLC Controller

1800L Fermentation Tank

12000L Bright Beer Tank

Related Cases

Bent Bine Brewery - (4)
10HL brewery equipment installed at Bent Bine Brewery in Seattle USA
Rock N Roll_Brewery_7BBL_Craft_Brewery_Equipment 4
7BBL Brewing System of Rock N Roll Brewery (CO, USA) From Tiantai Company
Japan 1000L brewery
宇宙ブルワリー Uchu Brewing 1000L Brewery in Japan
Korea 1000L Brewery equipment
White Crow Brewing 1000L Brewery Equipment in Korea
