15000KL Annual Production Brewery

Industrial Brewhouse (22)
Industrial Brewhouse (21)
Industrial Brewhouse (20)

The 10000L Commercial Brewery System is designed for commercial breweries, where the finished beer is packaged in kegs or cans selling in market. It usually have 4-vessel brewhouse—mash tun,lauter tun, boiling kettle tun,whirlpool tun—capable of producing 1 to 8batches per day with consistency and efficiency.

Capacity / batch 10000L 10000L 10000L
Brewing batch / day 4 6 8
Brewhouse specification 4 vessels 5 vessels 6 vessels
Fermenters specification 10000L*4 10000L*6 10000L*8 +20000L*8
Arrange consultation

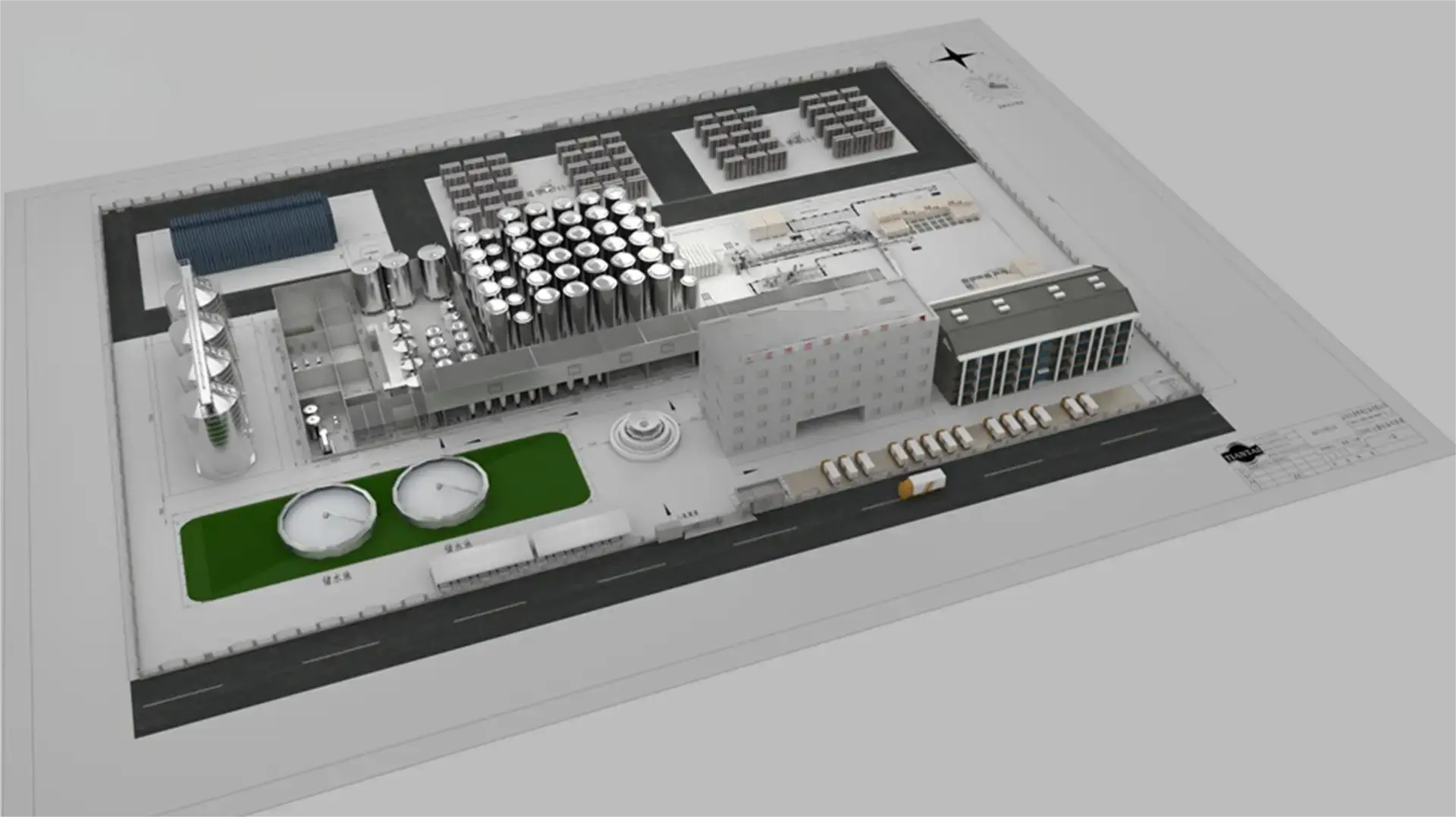

Layout and Process

Tiantai designs the layout according to your site and conducts beer process design to improve site utilization and save energy for you.

Ingredients Storage System

Pallets *8-10 sets

Malt Milling System

Dry mills *1 unit

Brewhouse System
  • Mash tun *1 unit
  • Lauter tun *1 unit
  • Brew kettle *1 unit
  • Whirlpool tank *1 unit
  • Plate and frame heat exchanger *1 unit
  • Wort aeration system *1 set
  • Yeast pitching system *1 set
  • Supporting pumps, valves, sanitary stainless steel pipes, various sensors, operating platforms, etc.

Fermentation System
  • Fermenter *12 units
  • Fermenter *14 units
  • Supporting pumps, valves, sanitary stainless steel pipes, various sensors, operating platforms, etc.

Filtration System

– Kieselguhr adding tank *1 unit
– Front buffer tank *1 unit
– Kieselguhr mixing tank *1 unit
– Candle filter *1 unit
– Rear buffer tank *1 unit
– Bag trap *1 unit
– Other adding systems are equipped according to the process
– Supporting pumps, valves, sanitary stainless steel pipes, various sensors, operating platforms, etc.

Maturation and Conditioning

– Bright beer tank *1 unit
– Supporting pumps, valves, sanitary stainless steel pipes, various sensors, operating platforms, etc.

Pasteurization System

– Flash pasteurizer *1 unit
– Buffer tank *1 unit
– Supporting pumps, valves, sanitary stainless steel pipes, various sensors, operating platforms, etc.

Control System

PLC cabinet *1 set

CIP System

– Hot alkali tank *1 unit
– Hot water tank (sterile water tank) *1 unit
– Supporting pumps, valves, sanitary stainless steel pipes, various sensors, etc.

Hot Water Supply

– Hot liquor tank *1unit
– Supporting pumps, valves, sanitary stainless steel pipes, various sensors, etc.

Cold Water Supply

– Cold liquor tank *1 unit
– Supporting pumps, valves, sanitary stainless steel pipes, various sensors, etc.

Brewing Water Supply

– Brewing water tank *1 unit
– Supporting pumps, valves, sanitary stainless steel pipes, various sensors, etc.

Refrigeration System

– Chiller *1 unit
– Glycol water tank *1 unit
– Supporting pumps, valves, sanitary stainless steel pipes, various sensors, etc.

Reverse Osmosis System

– Raw water tank *1 unit
– RO water treatment machine *1 unit
– Supporting pumps, valves, sanitary stainless steel pipes, various sensors, etc.

Steam Supply System

– Steam boiler *1 unit
– Distributor *several set
– Steam pipes, valves, etc

Compressed Air Supply System

– Oil-free air compressors *2 sets
– Air buffer tank *1 sets
– Air dryer *1 sets
– Several filters
– Supporting pumps, valves, etc.

Electricity Supply System

– Power cables
– Signal communication cables
– Cable bridge
– Bridge bracket
– Conduit

Filling System (bottle)

– Depalletizer *1 set
– Rinsing machine *1 unit
– Filling machine *1 unit
– Capper machine *1 unit
– Tunnel pasteurizer *1 unit
– Drying Machine *1 unit
– Labelling Machine *1 unit
– Inspection Machine *1 unit
– Packaging Line *1 set
– Palletizer *1 set

1.General Description

A brewery with an annual production capacity of 15 million liters is a high-volume facility capable of manufacturing around 15 to 20 million bottles of beer each year. This type of equipment is designed to not only meet the large-scale production demands of mainstream beers like lagers but also offer the flexibility to craft a variety of specialty beers, catering to the diverse needs of different markets.

This brewing system supports multiple packaging formats, such as glass bottles, cans, kegs, and PET bottles, which are distributed to various outlets including supermarkets, restaurants, bars, and pubs.

For optimal efficiency, it is recommended that such facilities be situated as close as possible to their target markets. This approach helps reduce transportation distances, streamline logistics, and ensure that the beer remains fresh when it reaches consumers.

brewery,mashing,mashing vessels,breweries,mashing kettle,boiling kettle,lauter tun,whirlpool tank,beer brewing,mashing, lautering, boiling, whirlpooling,beer equipment

brewery equipment,brewery house,brewhouses,fermenters,brew houses

brewery,mashing,mashing vessels,breweries,mashing kettle,boiling kettle,lauter tun,whirlpool tank,beer brewing,mashing, lautering, boiling, whirlpooling,beer equipment

brewery equipment,brewery house,brewhouses,fermenters,brew houses

brewery equipment,brewery house,brewhouses,fermenters,brew houses

2.Product Advantages

  • Certified by ISO, TUV, and SGS, meeting GB/CE/PED/ASME standards
  • Local service available in Europe, Australia, and other regions
  • 5-year warranty on tanks
  • Zero trade risk, verified by over 2,600 breweries

3.Main components
beer brewing equipment,brewery equipment,beer equipment,brewing equipment, micro brewery equipment, commercial brewery equipment,industrial brewery equipment,

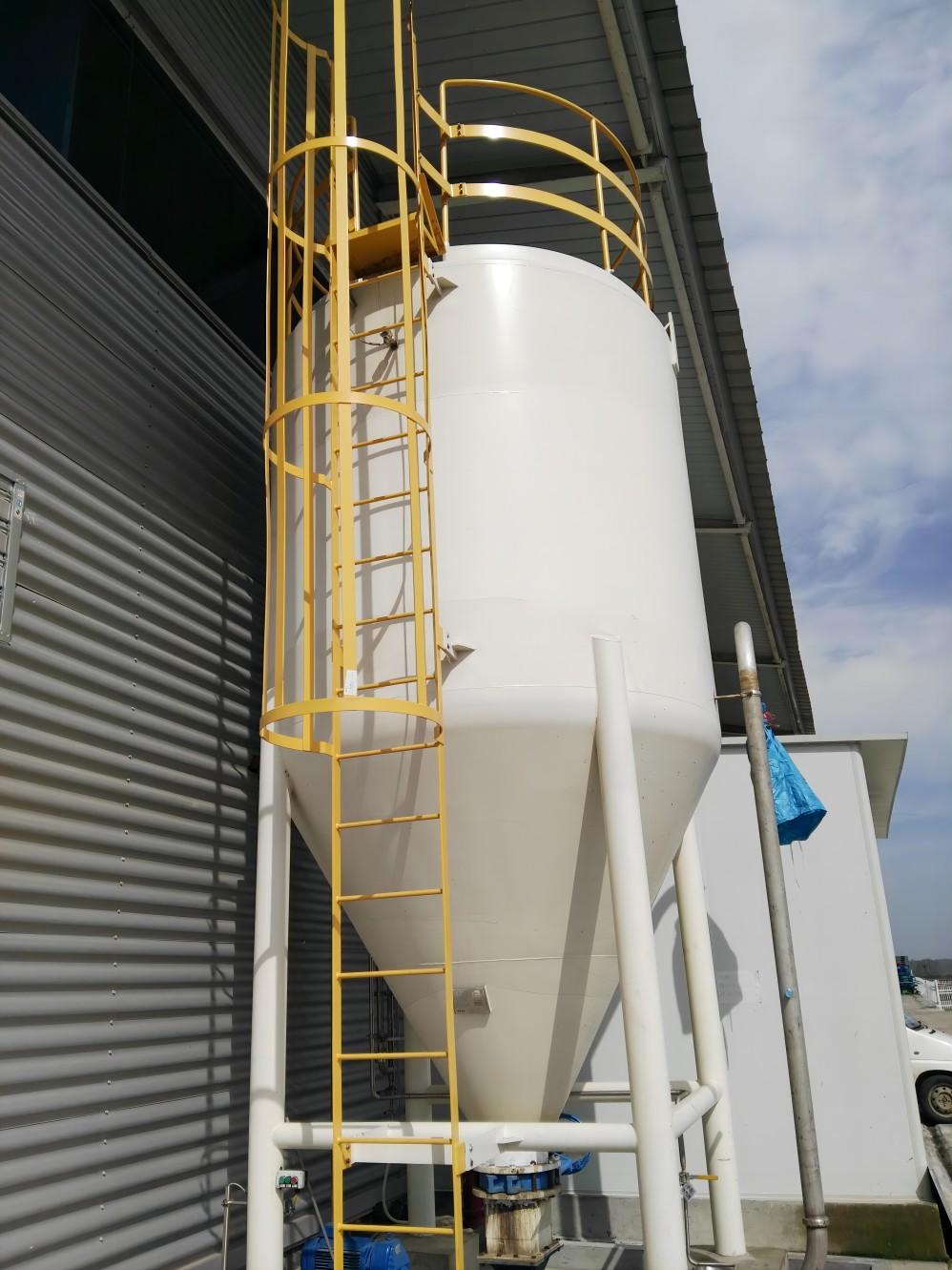

Ingredients Storage System
– Steel silo *2-6 units
– Bucket elevator *2-3 units
– En-Masse Conveyor *2 units
– Operating Platform *1 set

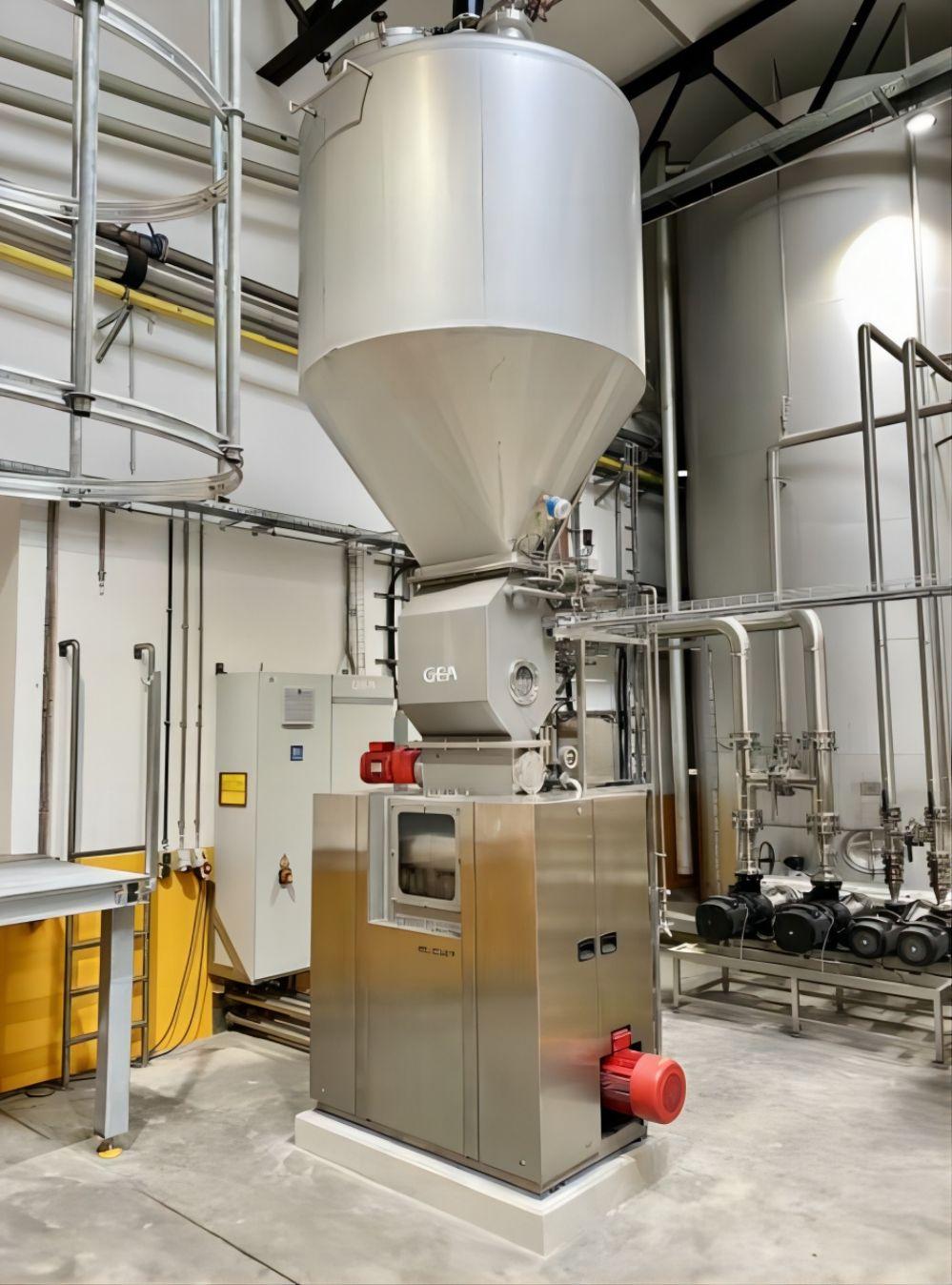

Malt Milling System
– Bucket elevator *2 units
– Gravity destoner *1 unit
– Permanent magnet drum *1unit
– Wet mills *1 unit
– Pulse dust collector *1 set
– Operating Platform *1 set
Brewhouse System
– Mash tun *1 unit
– Lauter tun *1 unit
– Cereal cooker *1 unit
– Brew kettle *2 units
– Whirlpool tank *1 unit
– Plate and frame heat exchanger *1 unit
– Wort aeration system *1 set
– Yeast pitching system *1 set
– Supporting pumps, valves, sanitary stainless steel pipes, various sensors, operating platforms, etc.
Brewery equipment,beer brewing equipment,beer equipment, Brewery equipment for sale, brewing equipment,small brewery equipment,brewhouse, fermenter,

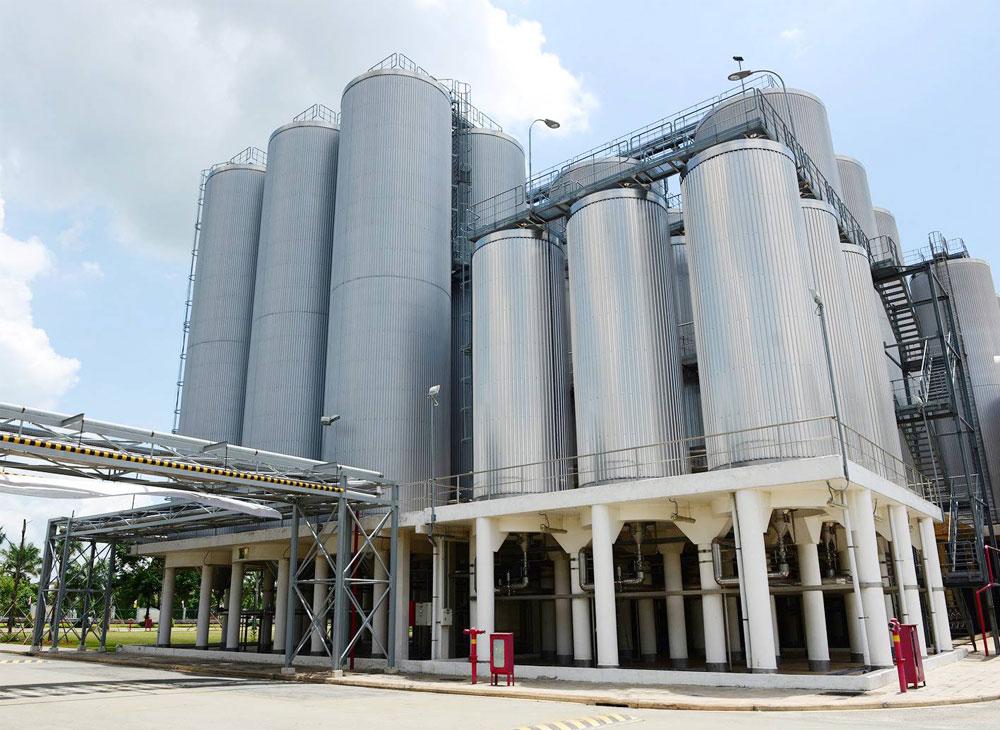

Fermentation System
Outdoor Fermenters
Supporting pumps, valves, sanitary stainless steel pipes, various sensors, operating platforms, etc.
Brewery equipment,beer brewing equipment,beer equipment, Brewery equipment for sale, brewing equipment,small brewery equipment,brewhouse, fermenter,

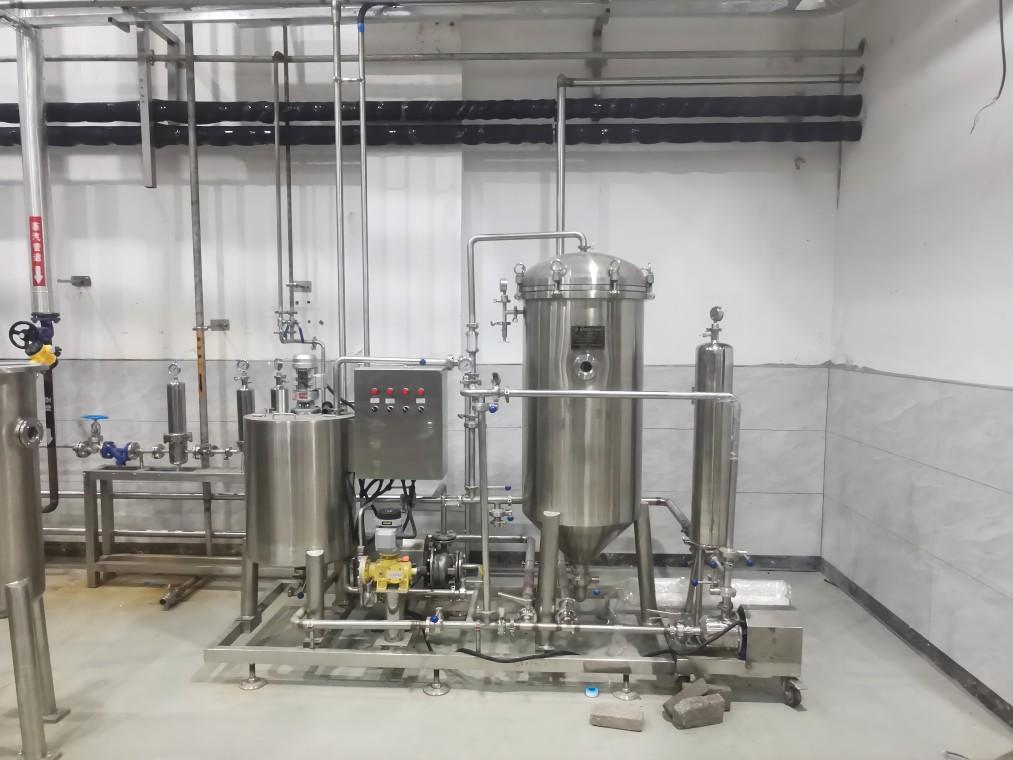

Filtration System
– Disc centrifuges *1 unit
– Buffer tank *1 unit (According to process design)
– Kieselguhr adding tank *1 unit
– Front buffer tank *1 unit
– Kieselguhr mixing tank *1 unit
– Candle filter *1 unit
– Rear buffer tank *1 unit
– Bag trap *1 unit
– Other adding systems are equipped according to the process
– Supporting pumps, valves, sanitary stainless steel pipes, various sensors, operating platforms, etc.

Brewery equipment,beer brewing equipment,beer equipment, Brewery equipment for sale, brewing equipment,small brewery equipment,brewhouse, fermenter,
Maturation and Conditioning
Outdoor Brite beer tanks
Supporting pumps, valves, sanitary stainless steel pipes, various sensors, operating platforms, etc.
Pasteurization System
– Flash pasteurizer *1 unit
– Buffer tank *1 unit
– Supporting pumps, valves, sanitary stainless steel pipes, various sensors, operating platforms, etc.

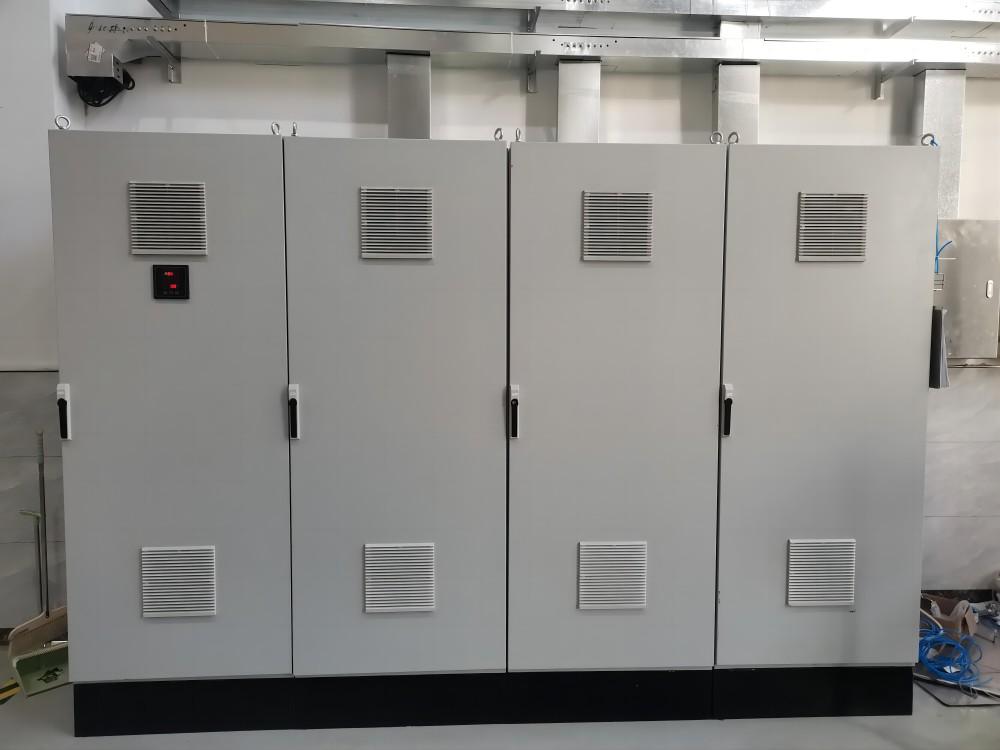

Control System
– MCC cabinet *1-4 sets
– PC operator station *1 set
– Operation system *1 set
– Brewing program *1 set
Brewery equipment,beer brewing equipment,beer equipment, Brewery equipment for sale, brewing equipment,small brewery equipment,brewhouse, fermenter,
CIP System
– Hot alkali tank *2 units
– Cold alkali tank *2 units
– Acid tank *2 units
– Disinfectant tank *2 units
– Hot water tank (sterile water tank) *2 units
– Supporting pumps, valves, sanitary stainless steel pipes, various sensors, etc.
Hot Water Supply
– Hot liquor tank *1unit
– Heat exchanger *1 unit
– Supporting pumps, valves, sanitary stainless steel pipes, various sensors, etc.
Cold Water Supply
– Cold liquor tank *1 unit
– Heat exchanger *1 unit
– Supporting pumps, valves, sanitary stainless steel pipes, various sensors, etc.
Brewing Water Supply
– Brewing water tank *1 unit
– Supporting pumps, valves, sanitary stainless steel pipes, various sensors, etc.

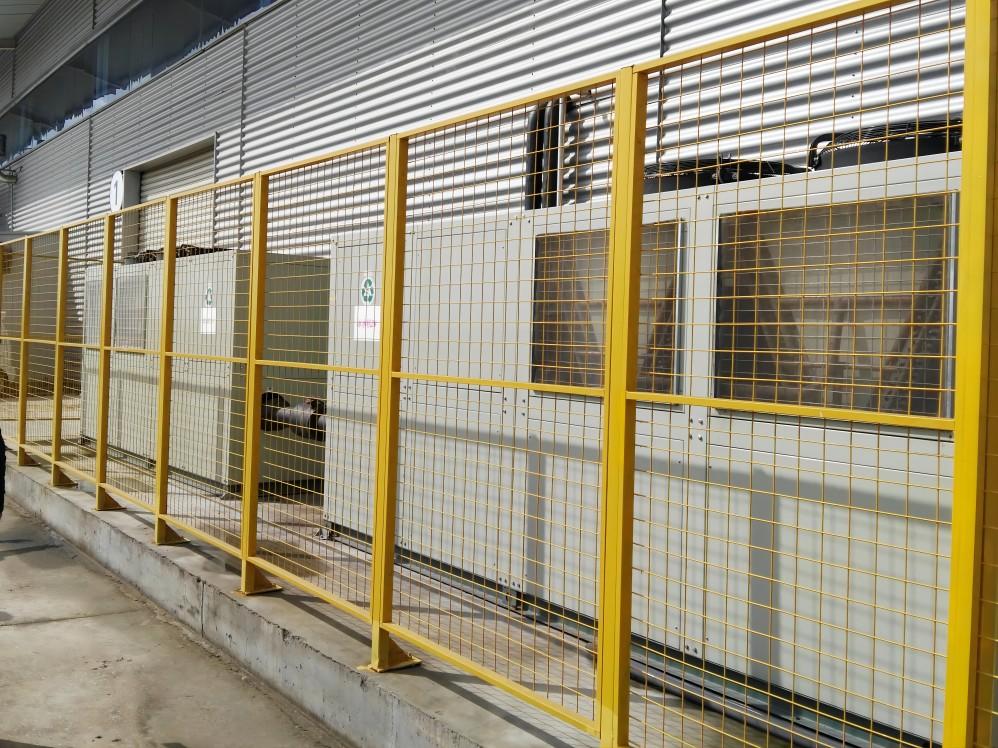

Refrigeration System
– Chiller *2 units
– Glycol water tank *1 unit
– Cooling tower *1 unit (According to process design)
– Supporting pumps, valves, sanitary stainless steel pipes, various sensors, etc.
Water Deaeration Systems
– Deoxygenation tower *1 unit
– Deoxygenated water storage tank *1 unit
– Supporting pumps, valves, sanitary stainless steel pipes, various sensors, etc.
Reverse Osmosis System
– Raw water tank *1 unit
– RO water treatment machine *1 unit
– Supporting pumps, valves, sanitary stainless steel pipes, various sensors, etc.

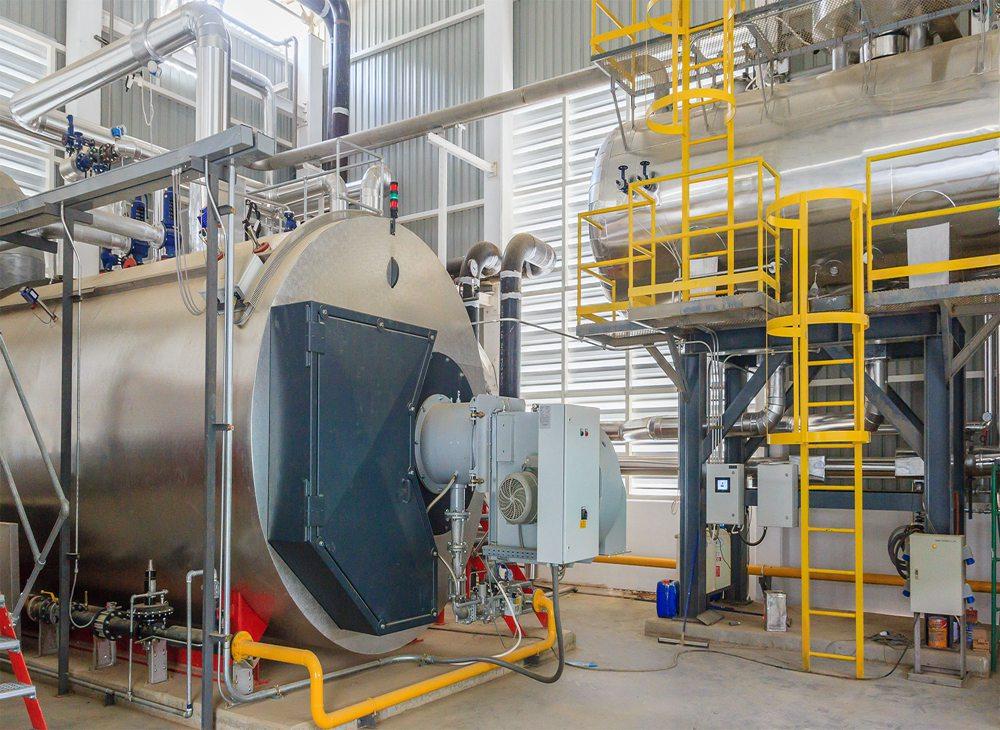

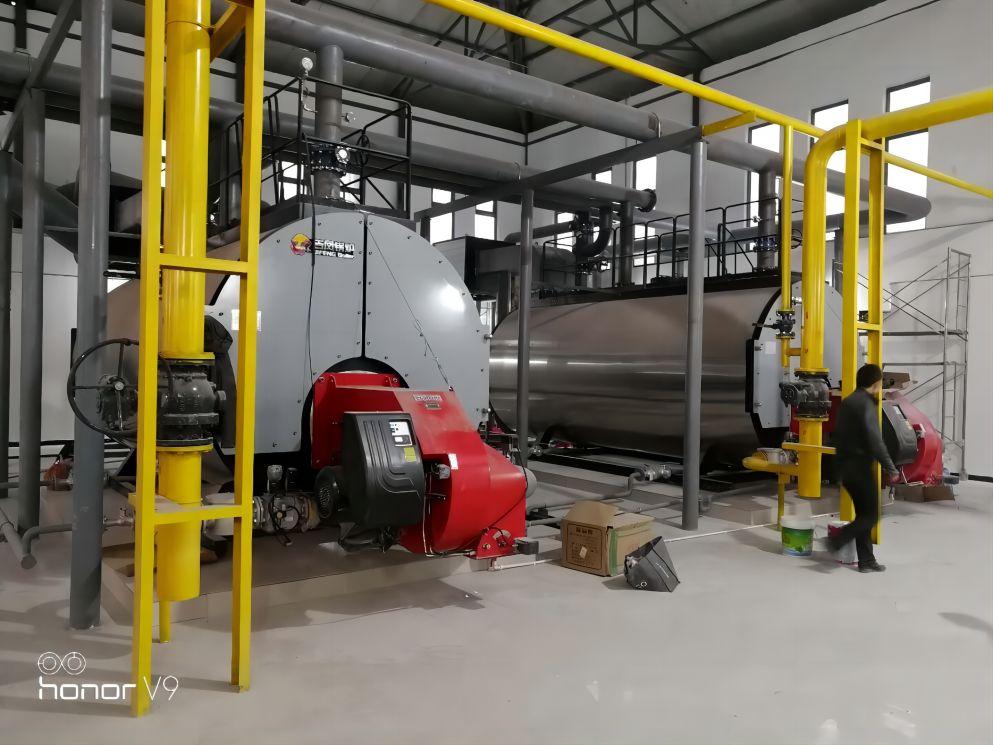

Steam Supply System
– Steam boiler *1-2 units
– Distributor *several sets
– Condensate tank *1 unit
– Energy storage tank *1 unit
– Steam pipes, valves, etc
brewery equipment,brewery house,brewhouses,fermenters,brew houses

Brewery equipment,beer brewing equipment,beer equipment, Brewery equipment for sale, brewing equipment,small brewery equipment,brewhouse, fermenter,
Compressed Air Supply System
– Oil-free air compressors *2 sets
– Air buffer tank *1 sets
– Air dryer *1 sets
– Several filters
– Supporting pumps, valves, etc.
Brewery equipment,beer brewing equipment,beer equipment, Brewery equipment for sale, brewing equipment,small brewery equipment,brewhouse, fermenter,

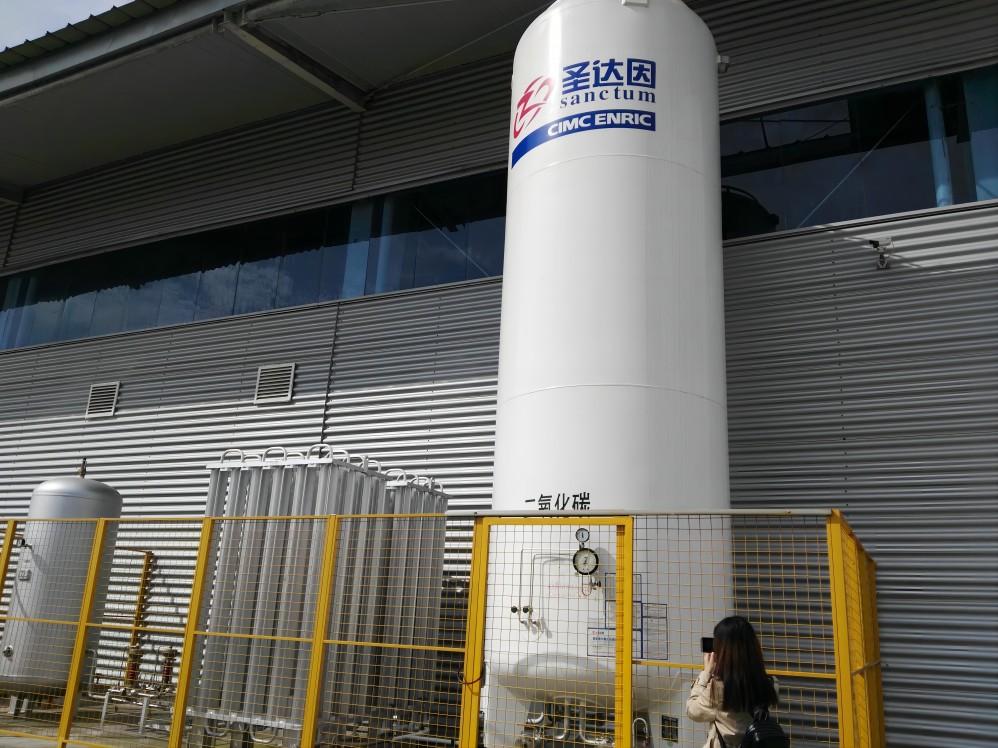

CO2 Supply System
– Liquid CO2 storage tank *1 unit
– Gasifier *1 unit
– Pressure regulating station *1 set
– Buffer tank *1 unit
– Supporting pumps, valves, sanitary stainless steel pipes, detection sensors, etc.
brewery equipment,brewery house,brewhouses,fermenters,brew houses

Brewery equipment,beer brewing equipment,beer equipment, Brewery equipment for sale, brewing equipment,small brewery equipment,brewhouse, fermenter,
Electricity Supply System
– Power cables
– Signal communication cables
– Cable bridge
– Bridge bracket
– Conduit
High-Gravity Dilution System
– Raw water flow automatic control system
– Dilution water preparation system
– Deoxygenated water level control unit
– Deoxygenated water carbonation unit
– Deoxygenated water cooling unit
– Deoxygenated water secondary mixing unit
– Deoxygenated water buffer unit
– CIP unit
– PID volume control system
– PLC electronic control system
– Supporting pumps, valves, sanitary stainless steel pipes, detection sensors, etc.

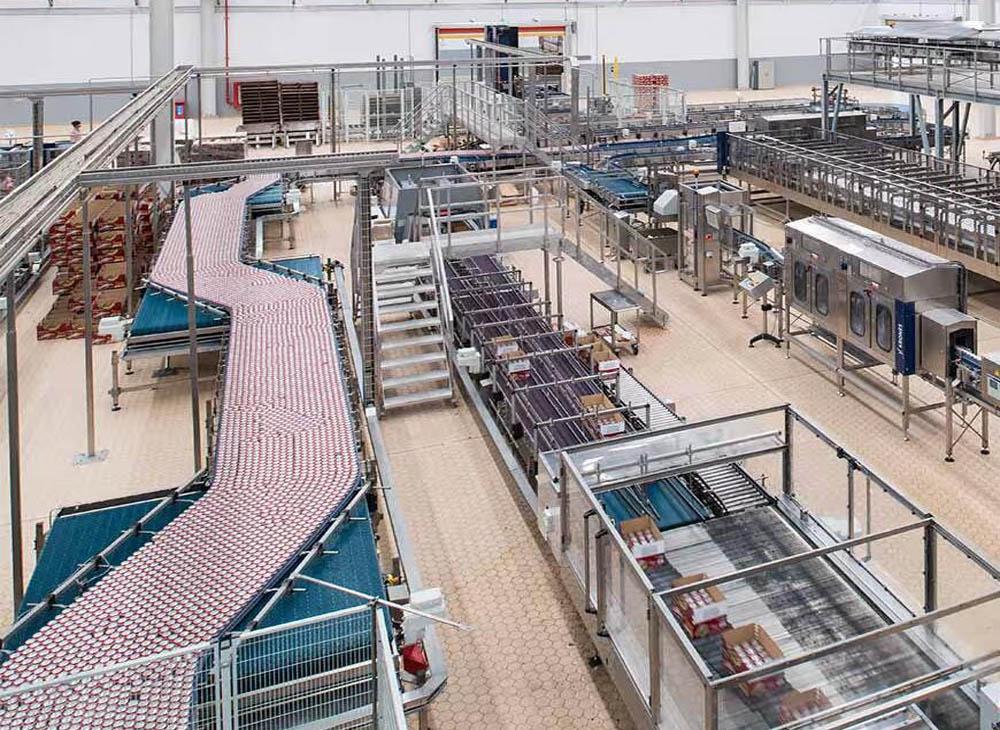

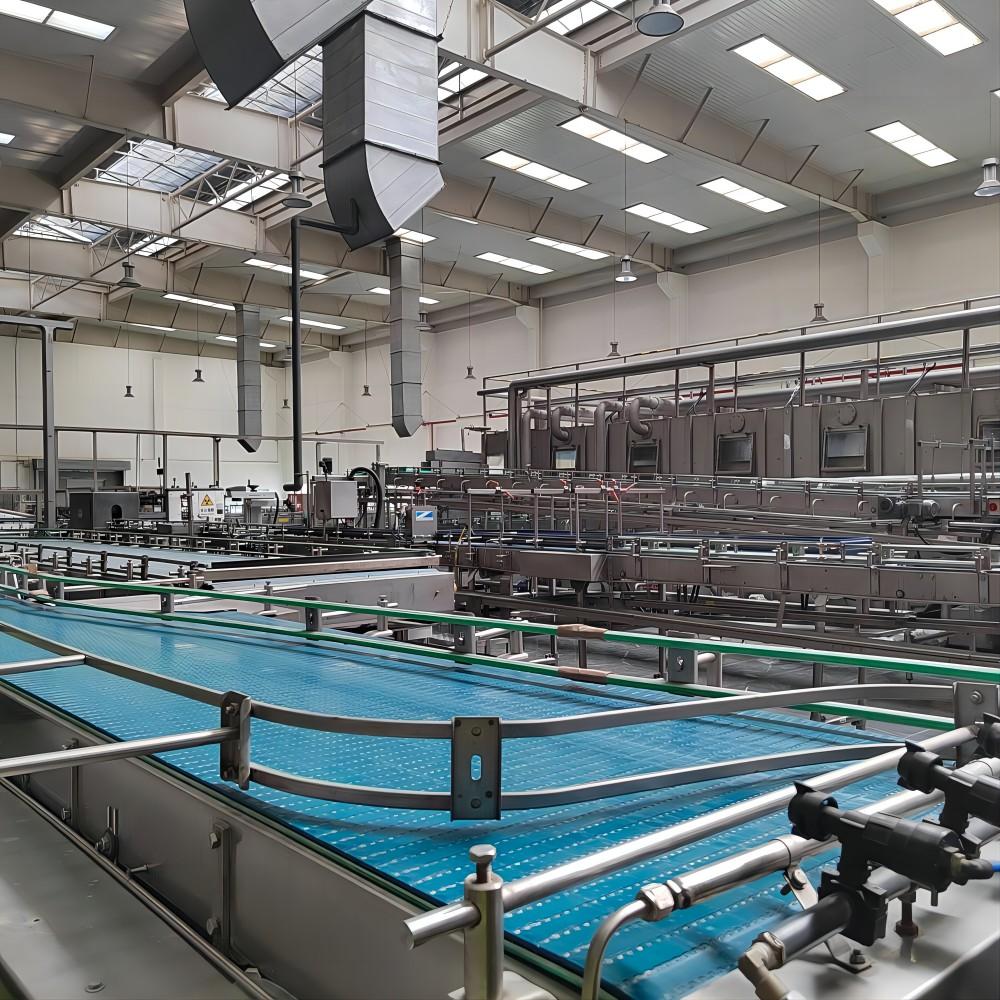

Filling System (bottle)
– Depalletizer *1 set
– Rinsing machine *1 unit
– Filling machine *1 unit
– Capper machine *1 unit
– Tunnel pasteurizer *1 unit
– Drying Machine *1 unit
– Labelling Machine *1 unit
– Inspection Machine *1 unit
– Packaging Line *1 set
– Palletizer *1 set
brewery equipment,brewery house,brewhouses,fermenters,brew houses

Brewery equipment,beer brewing equipment,beer equipment, Brewery equipment for sale, brewing equipment,small brewery equipment,brewhouse, fermenter,

4.Technologies and Services

●Study/Costing
We provide you with competent and consistent support during the evaluation of your investment.
●Technical Support
We offer: 2D/3D drawings, Layout plan, Interactions with civil engineering work.
●Manufacturing
Using modern manufacturing techniques, we produce precise, high quality stainless steel tanks.
●Installation
Our company has professional civil and mechanical piping staff, who provide you with on-site guidance and information about their project type.
●Application/Training
Our training for you: Operator training, Maintenance training, Automation training, Individual training for your specific needs
●Maintenance
At Tiantai, we offer a remote assistance service that allows our technicians to interact with operators remotely.
●Optimization
If you have equipment that needs upgrades or retrofitting, we can help you analyze its performance and identify areas for improvement.
●Spare Parts
No down-time, only on-time.The parts you order from us are the exact same or better than those already installed in your equipment.

beer brewing equipment,brewery equipment,beer equipment,brewing equipment, micro brewery equipment, commercial brewery equipment,industrial brewery equipment,

5. Quality Control

Product quality control should be carried out in the whole process, which not only includes quality control throughout the manufacturing process, but also requires quality control in the previous communication process and technical design process. The design of craft brewery projects are subject to the changes of personalized requirements, multiple configurations, and various floor plans. Therefore, it is key to accurately meet user needs.

We decompose all the parameter of each item into standardization, save them as a standard database, and convert them into standard text descriptions and technical descriptions. In this way, it helps to realize the unambiguous communications from users, our sales staff, to our technical team. Every user will be served by the same sales staff and the technician throughout the whole process from the pre-sales consultation to the order delivery, which greatly helps to avoid any information loss when handing over the works among different teams in different working process.

Technical design, as the hub of project execution, shall be strictly followed by the manufacturing. Of course, the manufacturing process must be carried out along with the all-round and full-process quality control, from the selection of raw materials, the inspection of raw materials when arrival, to the product processing. Our guarantees of reliable quality cover aspects of stable and reliable raw material supply, scientific and reasonable production process design, strict processing standards, professional staff skills training, advanced processing facilities and comprehensive quality inspection system.

6. Brewery cases
beer brewing equipment,brewery equipment,beer equipment,brewing equipment, micro brewery equipment, commercial brewery equipment,industrial brewery equipment,

Fermentation tanks,brewing,beer equipment,winemaking, control systems, fermentation

7. Tiantai Company

Tiantai turnkey brewery plants offer innovative solutions and cutting-edge technology to help you achieve your brewing dreams. With us, you can trust that your project will be in expert hands from start to finish. As a general contractor, Tiantai supplies complete solutions for the entire brewing process. We manufacture precisely matched systems developed according to energy and economic aspects. Drawing on decades of experience in integrative systems construction, we have successfully completed numerous turnkey projects around the globe.

Learn more about how Tiantai beer equipment company not only produces the highest quality equipment for flavor-rich beers, but also helps optimize system configuration, maximize process uptime, and reduce beer loss during brewing. PLEASE DO NOT HESITATE TO CONTACT US!

Hubert
Email: [email protected]

Related Cases

Bent Bine Brewery - (4)
10HL brewery equipment installed at Bent Bine Brewery in Seattle USA
Rock N Roll_Brewery_7BBL_Craft_Brewery_Equipment 4
7BBL Brewing System of Rock N Roll Brewery (CO, USA) From Tiantai Company
Japan 1000L brewery
宇宙ブルワリー Uchu Brewing 1000L Brewery in Japan
Korea 1000L Brewery equipment
White Crow Brewing 1000L Brewery Equipment in Korea

Why Choose Tiantai

Provided services and solutions to more than 2,800+ customers worldwide.

Tiantai designs and engineers complete breweries, covering all activities from malt handling to control, brewing to fermenting, filtering to bottling, and packaging.

As one of the oldest suppliers of brewing, distilling, fermenting and filling equipment in China, Tiantai is recognized not only for high-quality equipment, but also for our technical expertise, design services and superior customer service.

Global Reach

We have solutions in use around the world, and an ever-expanding office network provides accessibility and responsive support. With an unwavering focus on innovation, quality and customer service, we employ highly skilled engineers, technicians and support staff, supported by our global network of agents and distributors.

Sustainability

The company is committed to continuous growth, maintaining a truly customer-focused team culture and being aware of our responsibility to the environment. We prioritize sustainable practices across all aspects of our and our customer’s operations, contributing to a more sustainable future for the industries and the planet.

Customers Say...

Hear directly from those who use Tiantai equipment every day.

Request A Quote
Get A Quote
Get A Quote

Start typing and press enter to search

Scroll to Top
