1.Production Description
Tiantai 400L Kombucha Brewing Equipment Kombucha Fermentation Tank includes kombucha brew house, mash lauter tun, brew kettle, kombucha open top fermenters, scoby tank, kombucha pressure conical fermenter tanks, kombucha storage tank, carbonation tanks, bottling machine, canning machine, and other accessories needed for the production of kombucha.
Kombucha is a popular fermented tea drink that has gained a lot of popularity in recent years. If you are interested in starting a kombucha business and look for kombucha fermenting equipment, Tiantai company supply complete kombucha production line, the capacity can be 100L, 200L, 300L, 400L, 500, 600L, 800L, 1000L, 1200L, 1500L, 2000L, 2500L, 3000L, 4000L, 5000L, 100HL, 200HL, and more.
2.Kombucha Brewing Equipment Production Line
-Kombucha brewhouse:
It includes brewing kettle, hot water tank, etc. It is for water boiling, add sugar and tea steeping, mix by agitator.

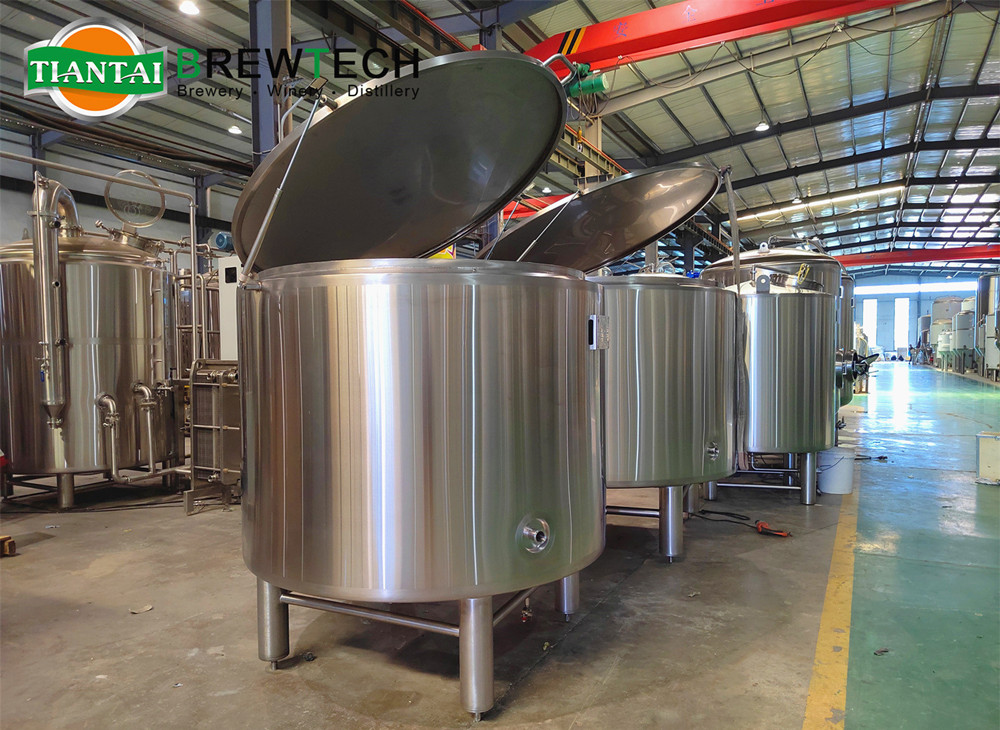

-First stage open top kombucha fermentation tank:
Aerobic open top fermentation tank, also work as SCOBY storage tank, ferment in room temperature.
The function is store SCOBY and produce ‘starter liquid’ at room temperature.
-Second stage pressure fermentation tank:
For kombucha fermentation and flavouring.
-Storage tank/Brite tank:
Filtered Kombucha storage and carbonate/fizzy the Kombucha for package.
-Filter Kombucha by DE filter and Membrane filter:
DE filer is coarse filter, it can make Kombucha clear. Membrane filter is fine filter, it can filter bacteria.
-Glycol cooling system:
It includes glycol water tank, glycol water chiller, glycol water pump and pipeline.
-Control cabinet:
It is for temperature control, pump control, motor control.
-CIP cart:
It is for all tanks cleaning.
3.Kombucha Tank Specification List
| Kombucha
Fermentation Tank |
Function:Kombucha fermentation or maturation |
| Exterior Shell: SUS304 full welded; TH=2mm | |
| Interior Shell: SUS304 full welded; TH=3mm | |
| 100% TIG welding with pure argon gas shield | |
| Interior Finish: Sanitary 2B finish, Pickled and Passivated; (8K Mirror finish optional) | |
| Exterior Finish: Oil brushed finish(2B, 8K Mirror finish optional) | |
| Interior full polished to 0.2~0.4 μm without dead corner | |
| Glycol Jacket: Dimpled plate (Optional) | |
| Stringent tank leakage test by water and pressured gas | |
| Sanitary flat open top | |
| Conical bottom | |
| TC connected CIP arm with 360° coverage spraying ball | |
| CO2 blow-off arm with butterfly valve | |
| Sanitary sample valve TC | |
| Tri clamp discharge arm with butterfly valve | |
| Thermowell for high accuracy temperature sensor | |
| 4pcs completely SUS304 heavy duty legs with leveling pad and legs support |
