A flash pasteurization machine is a specialized system designed to rapidly heat and cool liquid beverages—like beer, cider, kombucha, juice, or tea—to kill harmful microorganisms without damaging flavor, aroma, or quality. It’s also called an HTST system (High Temperature, Short Time).
How Does It Work?
Here’s a basic step-by-step of how the machine works:Product Infeed: The unpasteurized beverage flows into the system from a holding tank.
Heat Exchanger: The beverage passes through a heat exchanger, where it’s quickly heated to 72–75°C (161–167°F).
Holding Tube: It stays at that temperature for 15–30 seconds—just enough to kill bacteria, yeast, and mold.
Rapid Cooling: The beverage is immediately cooled back down to around 2–5°C (35–41°F).
Transfer to Filler: The pasteurized beverage goes straight to a sterile or clean filling machine for bottling or canning.
.jpg)

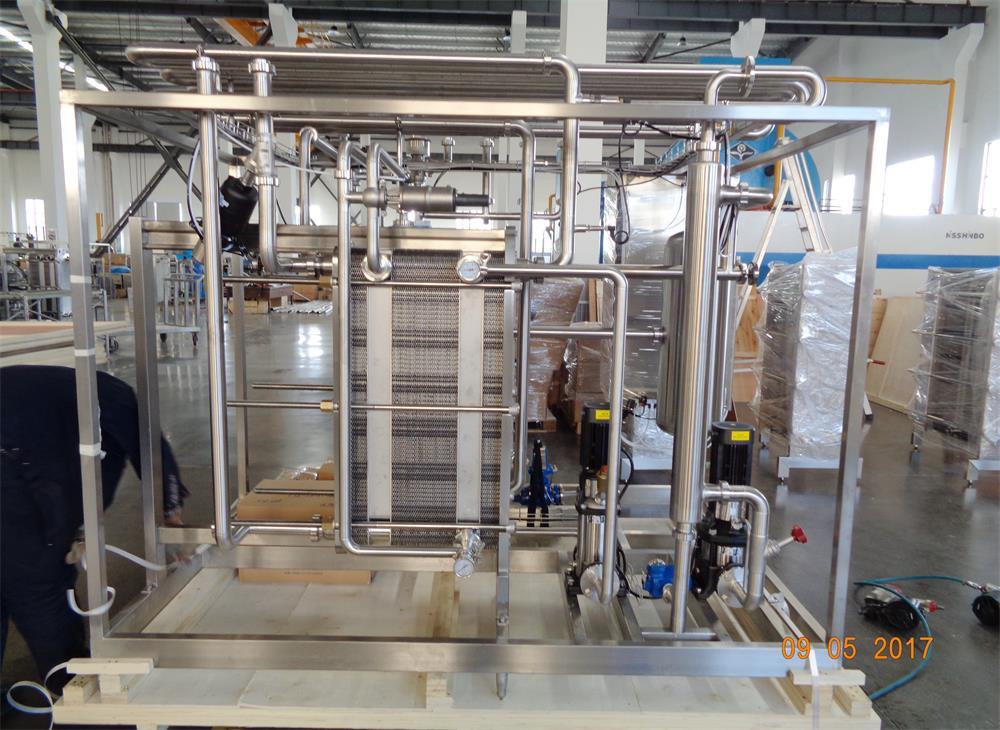

Main Components of a Flash Pasteurizer:
Balance Tank: Holds the incoming beverage before pasteurization.

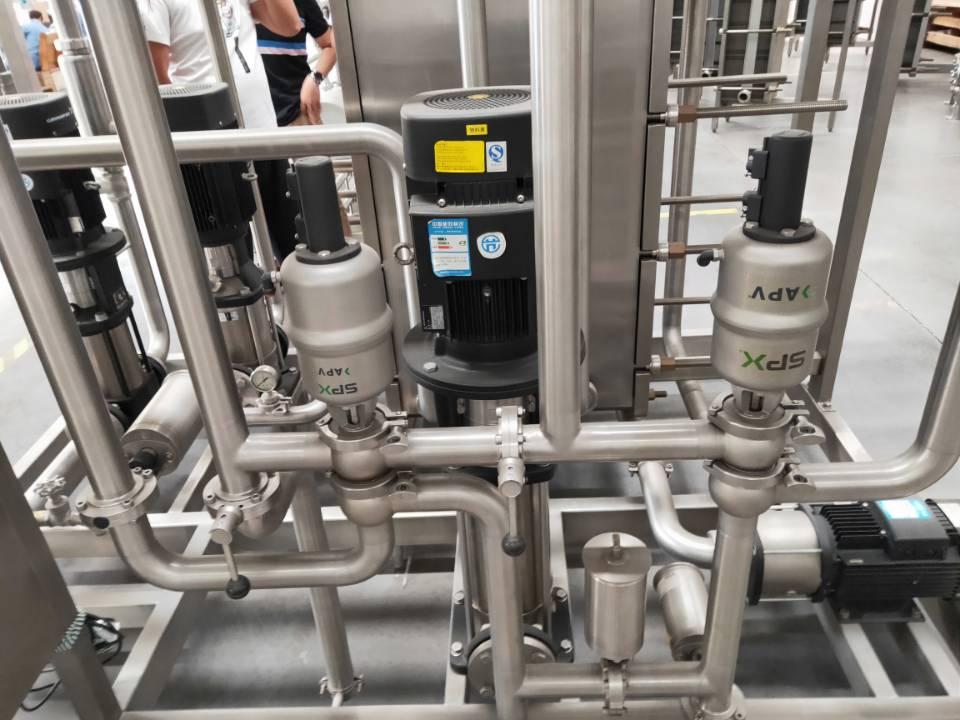

Centrifugal Pump: Pushes the beverage through the system.

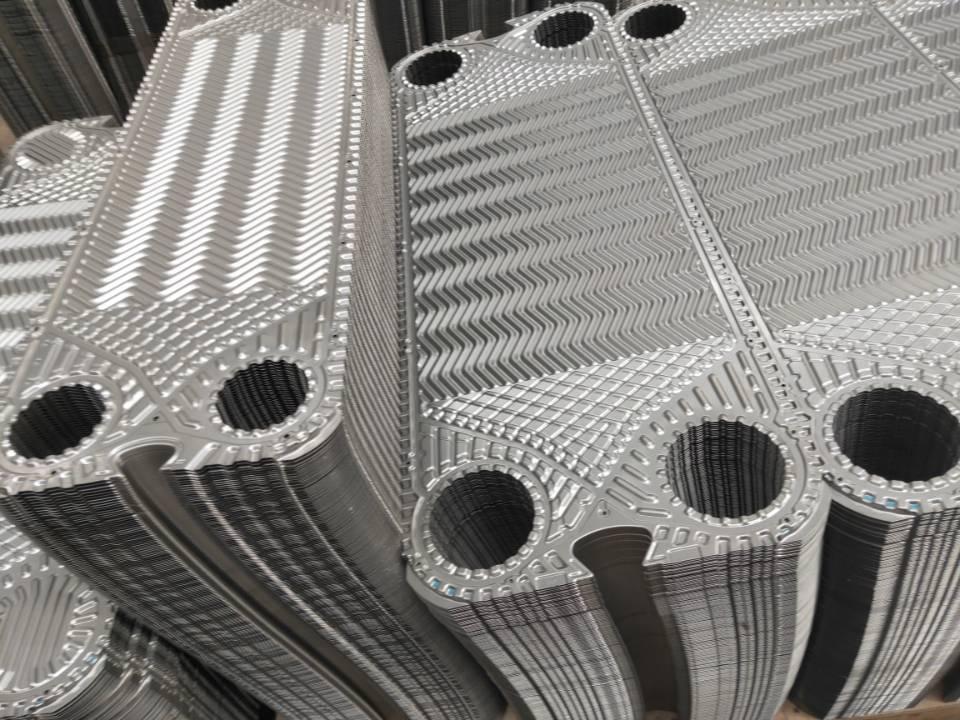

Plate or Tubular Heat Exchanger: Where heating and cooling occur.
Holding Tube: Ensures the product stays at the target temperature long enough.
Temperature Control System: Maintains precise conditions.
PU Monitor: Measures Pasteurization Units to verify proper treatment.
CIP System: (Clean-In-Place) for easy sanitation and hygiene control.
Important Note: Needs Clean/ Sterile Filling
Since flash pasteurization happens before packaging, it’s crucial to have:
A cleanroom environment
Sterile or clean fillers
Strict hygiene controls to prevent recontamination
Why go with flash pasteurization?Benefits of Flash Pasteurization Machines:
1. Short Exposure = Better Flavor & FreshnessFlash pasteurization is very quick and gentle, which helps preserve:
Fresh aromas and flavors
Natural color and clarity
Delicate compounds in craft or unfiltered drinks
Ideal for light-bodied beers, fresh-tasting ciders, and flavorful kombuchas where you want minimal impact on sensory profile.
2. Precise and Consistent Microbial Control
Because it uses controlled equipment with heat exchangers, flash pasteurization allows:
Very accurate temperature control
High repeatability and reliable kill of bacteria, yeasts, molds
Consistent Pasteurization Units (PUs) with minimal over-processing
It’s particularly useful for beverages with residual sugar or low ABV—where microbial stability is essential but flavor must stay intact.
3. Fast, Continuous Process
Flash pasteurization is:
A continuous inline process
Easy to integrate with automated filling lines
Well-suited for medium to large-scale production
If you're running a high-volume bottling or canning line, flash pasteurization helps keep throughput fast and efficient.
4. Great for Sterile Filling Systems
Flash pasteurization works best when combined with aseptic or sterile packaging environments, where the beverage goes directly into containers without being exposed to air or contaminants.
That setup is ideal for:
Modern breweries with sterile fillers
Kombucha producers targeting shelf-stable formats
Functional or low-sugar RTD drinks with a risk of spoilage
5. Energy-Efficient with Heat Recovery
Most flash pasteurizers come with heat recovery systems, where outgoing product pre-heats the incoming flow. This:
Saves energy
Lowers operating costs
Makes it more sustainable
.jpg)
Who Should Choose Flash Pasteurization?
Flash pasteurization is a smart option for:Producers with aseptic packaging systems
Filtered beer, cider, kombucha, or low pH functional drinks
Medium to large scale operations needing high throughput
Brands aiming for clean-label shelf-stable products without preservatives
One Caveat
Since flash pasteurization happens before packaging, you’ll need:
Sterile filling equipment
Strict hygiene control post-pasteurization
Otherwise, there's a risk of recontamination during bottling or canning.
They’re especially useful for low-alcohol or low-pH drinks with residual sugars that are prone to spoilage.
Flash pasteurization is fast, gentle, and perfect for flavor-forward, clean-label beverages—as long as your packaging line can handle it. It’s a great fit for producers who need speed, shelf life, and sensory quality all in one.
.jpg)
The capacity of Flash Pasteurization Machines
The capacity of flash pasteurization machines varies widely depending on the size of your operation, your type of beverage, and your filling speed.Here’s a breakdown:
Common Flash Pasteurizer Capacities (L/hr)
| Machine Size | Capacity (Liters per Hour) | Best For |
| Small-scale | 300 – 1,000 L/hr | Pilot systems, craft breweries, kombucha startups |
| Medium-scale | 1,000 – 5,000 L/hr | Regional beverage producers, cideries, growing kombucha brands |
| Large-scale | 5,000 – 30,000+ L/hr | Industrial breweries, high-volume RTD lines, juice and soda plants |
What Affects Capacity Needs?
Filling Speed – Your pasteurizer must match or exceed your filler’s throughput. For example, if your bottling line does 3,000 bottles/hour (at 500 mL), you’d need at least 1,500 L/hr capacity.
Product Viscosity – Thicker beverages (e.g., pulpy juice or smoothie-like drinks) may move slower through the system.
Pasteurization Level (PU target) – Higher PU targets (for longer shelf life or higher sugar content) may require slower flow or more heating time.
Batch vs Continuous Operation – Some machines are designed for batch processing (smaller setups), while others are continuous flow systems for large production lines.
Examples of Typical Use-Cases
Craft Brewery: 1,000–2,000 L/hr flash pasteurizer, matched to a 1,000–1,500 bottles/hr line.
Cider Producer: 1,500–3,000 L/hr for stable product in glass or cans.
Kombucha Brand: 800–2,000 L/hr system to stabilize the product without killing the probiotic profile.
Juice Factory: 10,000+ L/hr with aseptic packaging system.
Need Help Sizing a System?
If you know your:
Daily production volume
Bottle/can size
Filling speed
Product type
I can help you calculate the ideal flash pasteurizer size for your operation.
Want to do that now? Please feel free to contact with TINATAI Co.
.jpg)
Want to compare flash pasteurization with tunnel pasteurization?
Let’s side-by-side comparison of Flash Pasteurization vs Tunnel Pasteurization, tailored for beverages like beer, cider, kombucha, and other shelf-stable drinks:
Flash Pasteurization vs Tunnel Pasteurization
| Feature | Flash Pasteurization | Tunnel Pasteurization |
| When Pasteurized | Before packaging | After packaging |
| Packaging Requirement | Requires sterile filling system | Standard filling OK |
| Microbial Stability | High—if sterile packaging is used | Very high—product is sealed before pasteurization |
| Process Type | Inline, continuous flow | Batch-style, conveyor tunnel with water spray zones |
| Temperature/Time | 72–75°C for 15–30 sec | 60–65°C for 10–30 min (PU-based) |
| Best For | Filtered beer, cider, kombucha, juices | Unfiltered, hazy beer, sugary cider, kombucha, live cultures |
| Recontamination Risk | Possible if post-pasteurization hygiene fails | None—packaged product is fully sealed |
| Shelf Life Impact | Good shelf life with sterile packaging | Excellent shelf life, even in unrefrigerated conditions |
| Hygiene Requirements | Strict hygiene needed after pasteurization | Lower risk—product is sealed |
| Equipment Needs | Flash pasteurizer + sterile filler | Tunnel pasteurizer only (standard filler OK) |
| Energy Use | Lower (with heat recovery systems) | Higher—heating entire sealed containers |
| Footprint | Compact, fits inline | Larger space required for tunnel + water system |
| Cost Comparison | Lower upfront cost (but needs sterile filler) | Higher investment, but simpler filling line |
When to Choose Flash Pasteurization?
You have aseptic or ultra-clean filling lines
You produce light, filtered, or delicate beverages
You want high throughput with minimal space
You prioritize flavor preservation and speed
When to Choose Tunnel Pasteurization?
You want maximum product safety and no recontamination risk
You're packaging unfiltered, sweet, or live beverages
You need to extend shelf life without refrigeration
You want flexibility in packaging (cans, glass, PET)
| Want fast, clean, flavor-preserving pasteurization? → Flash
| Want safety, stability, and peace of mind in the package? → Tunnel
.jpg)
If you are looking for pasteurization machine for your beer, cider, kombucha, or other beverage, TIANTAI bewtech can provide you high quality equipment with good price to support your project! Professional brewing supplier in China, Worthy of your trust!
