800L Brewpub Micro Brewery Equipment

800LBrewpub Craft Brewing Equipment Introduction
800L Brewpub Craft Brewing Equipment is between home brew and microbrewery equipment according to the capacity, it is a set of technological equipment for the production of heavy feeling craft beer. Because of its affordable cost and limited space requirement, It is really a good springboard for brewers to realize their brewing dreams further by sell beer to market. By Brewpub Craft Brewing Equipment, Brew master make their beer attractive to consumers by unique brewing process and distinctive beer favor.
The Brewpub Craft Brewing Equipment range from 800L to 1000L.And Brewpub Craft Brewing Equipment can be placed in: restaurants, pub, bars, hotels, tourist and shopping centers. Interpreter may be faced with polished brass, copper besides stainless steel. Also, the Brewpub Craft Brewing Equipment can be placed behind a glass partition that allows visitors to observe the process of making beer. This is an excellent design solution interior and a powerful marketing tool.
Beside the quality Brewpub Craft Brewing Equipment, Tiantai Company can provide you: Free consultant, Free design, Free installation, Training and commission. We will be your sincere partner on NanoBrewery System.


800L Brewpub Craft Brewing Equipment Specification

Output/Brew 800L
Brew/Week 2~6
Output/Week 1600~4800L
Electric Supply 3phase/380(220, 415,440…)v/50 (60)Hz
Single Phase/ 220(110, 240…)v/50(60)Hz
Heating Source Electric/Steam
Area Request >60M2
Brewmaster 1
Note: 1hl=100liter; 1Gallon=3.7854liter; 1Barrel (BBL) =117Liter;
buy brewery equipment,craft brewery equipment,brewery equipment list,


800L Brewpub Craft Brewing Equipment Configuration

General specification for 800L brewery equipment
No. Name Components Capacity Specification
1 Grain Milling Unit Rolling Miller 300~500kg/hr Double roller
Power:1.5Kw
Noise:45±3db

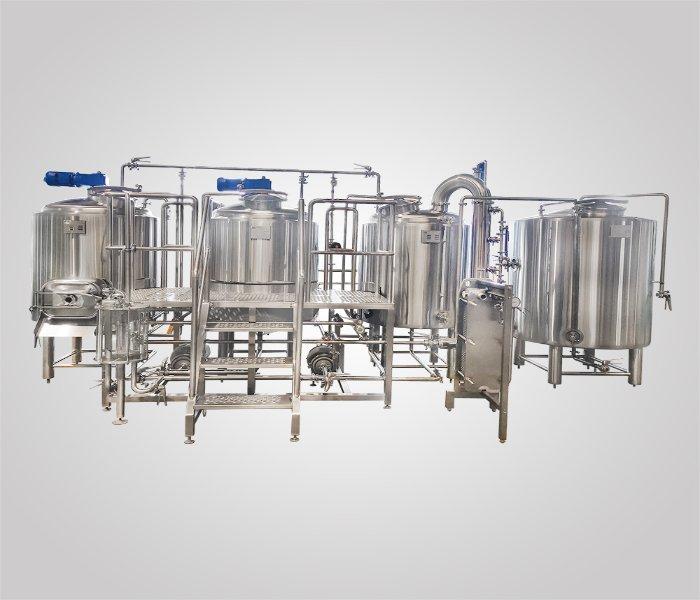

2 Brewhouse Unit Mash/Lauter & Whirlpool  tun 800L (total 1000L) Side mounted grain outdoor with grain chute
Tangential whirlpool inlet
Laser cutting V-wire False Bottom
Kettle Tun 800L (total 1040L) Steam heating
Sanitary leveling sight glass
Yeast feeder 10L Tri clamp aeration port with ball valve
Heat exchanger 8M2(Effective area) Completely 304 SS Corrugated plates
YUY pump 3M3 ABB, Sanitary SUS304, VFD control
Pipe and fittings As design completely SS304, Work Platform is included
3 Fermentation unit Fermenter 800L(total 1000L) Dimple cooling jacket on cone and bottom
Top manway
60 degree cone bottom
Perlick style full sanitary sampling valve
Carbonation port and level tube for special request
4 Filtration unit(optional) Plate-frame Filter Max Flow: 1.5T/h Power: 1.1kw
Cloth type, 10 layer
Different material will be different for the flow
5 Bright beer tank Bright beer tank 800L(total 960L) Dimple cooling jacket on cone and bottom
Level tube for checking
Top manway
Perlick style full sanitary sampling valve
Carbonation port with tri clmap carbonation stone
6 Glycol Chilling Unit Glycol Water Tank 2000L(total 2200L) Insulated conical top and sloped bottom
Chiller 8HPx1PCS Cooling Capacity: 15400Kcal/8HP
Installed Power:7.6kw
Refrigerant: Freon R404A ,R410A
Noise:70-80db
Coperland compressor
PVC pipe As designed Solenoid valves for glycol inlet to tanks are included
Glycol water pump 3M3 Sanitary SUS304, VFD control
7 Control unit Brewing and fermetation process Controlling Floor type PLC control with touch screen for special
PC or  mobile remote control for special request
8 CIP Caustic Tank 100L electric heating element inside, With bimetal thermometer
Sterilization Tank 100L H2O2
Pump 3M3 YUY, VFD control
9 Keg cleaning 2 head  20-30kegs/hr Heating: Electric, Power: 15kw
10 Keg filling A coupler Manual Coupler for filling beer
11 Bottling line 4 head 160-180 bottles/hr Manual
12 Others Option Can be Customized Auger System
Grain Case
Grist Hydrator
Piping flow panel for Brewhouse
Brewhouse Separate PLC Controller
