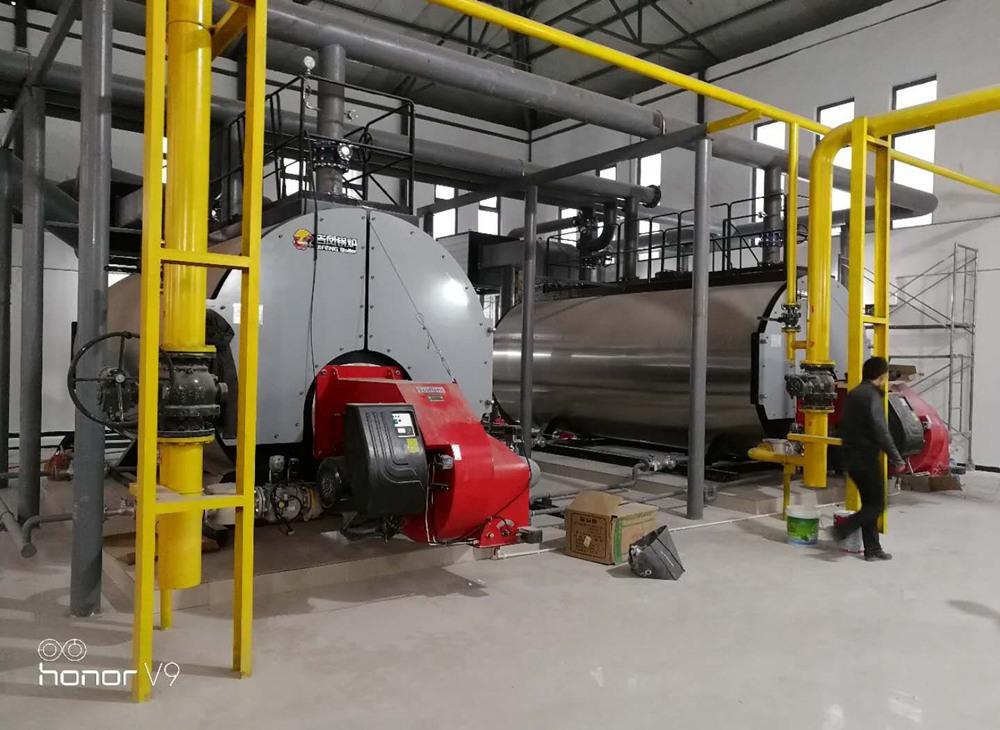

A brewery steam boiler is a critical piece of equipment used in the beer production process, providing consistent and efficient heat through steam. It generates steam by heating water in a pressurized system, usually fueled by natural gas, propane, or electricity. In a brewery, this steam is used primarily to heat brew kettles for mashing, boiling wort, sterilizing vessels, and cleaning equipment.
Key features of a brewery steam boiler typically include:
●Rapid Steam Production: Quick heat-up times to keep brewing schedules efficient.
●Precise Temperature Control: Essential for maintaining consistent mash and boil temperatures.
●Energy Efficiency: Many brewery boilers are designed for high efficiency to reduce fuel costs.
●Sanitation Support: Steam can also be used for CIP (Clean-In-Place) systems, helping maintain hygiene.
●Compact Design: Especially for craft breweries, boilers are often compact to fit within limited space.
●Durability and Safety: Boilers are built to withstand continuous operation under pressure and comply with strict safety standards.
The size and style of the boiler (e.g., vertical, horizontal, fire-tube, or water-tube) depend on the brewery's scale and production needs.
.jpg)
2. 6000KG/hr steam boiler specification sheet
Model: Brewery Steam Boiler 6000kg
| Parameter | Specification |
| Steam Output | 6000 kg/hr (6 ton/hr) |
| Rated pressure(Mpa) | 1.0-1.25MPA |
| Steam Temperature | 183-193°C (at 10 bar) |
| Fuel Type | Electric/Natural Gas / Diesel / LPG |
| Fuel Consumption | 495 Nm³/hr (natural gas) or ~336 kg/hr (diesel) |
| Thermal Efficiency | 98% (depending on model and burner) |
| Boiler Type | Fire-tube, Three-Pass, Wet Back |
| Burner Brand | Riello / Baltur / Weishaupt / Equivalent |
| Boiler Construction Material | High-grade Carbon Steel (Boiler plate: Q245R or equivalent) |
| Pump power(KW) | 7.5KW |
| Dimension (L×W×H) | Approx. 6000*2400*2800mm |
| Weight (without water) | Approx. 17024kg [Horizontal Type] |
| Control System | PLC automatic control with touchscreen panel |
| Safety Devices | Pressure Relief Valve, Low Water Level Alarm, Automatic Blowdown, Flame Detector |
| Standard Accessories | Feed Water Pump, Water Softener, Steam Header, Economizer (optional) |
| Certification | CE / ASME / ISO 9001 (depending on manufacturer) |
Notes:
Some suppliers offer integrated economizers to further increase efficiency (~5% fuel savings).
Boilers for breweries often have low NOx burners to meet emission standards.
Skid-mounted versions are available for faster installation.
3.Steam Boiler Technology and Services
3.1 Technology
Modern steam boilers use a range of advanced technologies to improve efficiency, safety, and ease of operation:
| Technology | Description |
| Three-Pass Design | Flue gases pass through the boiler three times for higher heat transfer and efficiency. |
| Wet-Back Construction | Improves boiler longevity by reducing rear wall stress and increasing heat absorption. |
| Fully Automatic Control (PLC Systems) | Touchscreen panels monitor pressure, temperature, fuel flow, water level, and alarm systems. |
| Low NOx Burners | Special burner design that reduces nitrogen oxide emissions, complying with environmental standards. |
| Modular Burner Systems | Allows boilers to adjust burner output depending on the steam demand, improving fuel efficiency. |
| Economizer (Optional Add-on) | A heat exchanger that recovers waste heat from exhaust gases to preheat the feedwater, boosting energy efficiency. |
| Water Softening and Treatment Systems | Prevents scaling and corrosion by treating feedwater before it enters the boiler. |
| Remote Monitoring | Some modern boilers allow remote operation and monitoring via Wi-Fi or mobile apps. |
| Blowdown Systems | Automatic systems that remove impurities from the boiler water to maintain water quality. |
3.2. Services
Manufacturers and service providers usually offer the following to support brewery operations:
| Service | Description |
| Installation and Commissioning | Full installation service, including piping, wiring, calibration, and initial startup. |
| Training Services | Training brewery staff on operation, safety procedures, troubleshooting, and maintenance. |
| Annual Maintenance Contracts (AMC) | Scheduled preventive maintenance to ensure efficiency, longevity, and safety. |
| 24/7 Emergency Support | Rapid technical support for unexpected shutdowns or boiler failures. |
| Water Treatment Services | Regular analysis and treatment of boiler feedwater to protect the system. |
| Spare Parts Supply | Quick supply of critical spare parts like gaskets, valves, sensors, and burner components. |
| Efficiency Audits | Periodic performance reviews to optimize boiler operation and reduce fuel costs. |
| Retrofitting and Upgrading | Updating old boilers with modern controls, economizers, or burners to improve efficiency. |
| Remote Monitoring and Diagnostics | Real-time monitoring and predictive maintenance services to reduce downtime. |
In breweries, it’s critical to maintain boiler efficiency because unstable steam supply affects the entire brewing process — from mash conversion to wort boiling and cleaning.
4.Complete Brewery System by TIANTAI Beer Equipment
TIANTAI designs and manufactures full turnkey brewing systems for craft breweries, microbreweries, and brewpubs, with capacities ranging typically from 100L to 50,000L per brew.
4.1. Brewhouse System
Configuration Options: 2-vessel, 3-vessel, or 4-vessel systems
Typical Vessels: Mash tun+Lauter Tun+Kettle Tun+Whirlpool Tun+Hot Liquor Tank (HLT)
Material: Food-grade stainless steel (SUS304 or SUS316)
Heating Methods:Steam heating (using a boiler)/Direct-fire heating/Electric heating
Automation: Semi-automatic or fully automatic control panels (PLC with touchscreen)
Special Features: Rake system for lauter tun, Grain-out door, Wort grant, Variable speed pumps, Energy-saving steam condensing systems (optional)
.jpg)

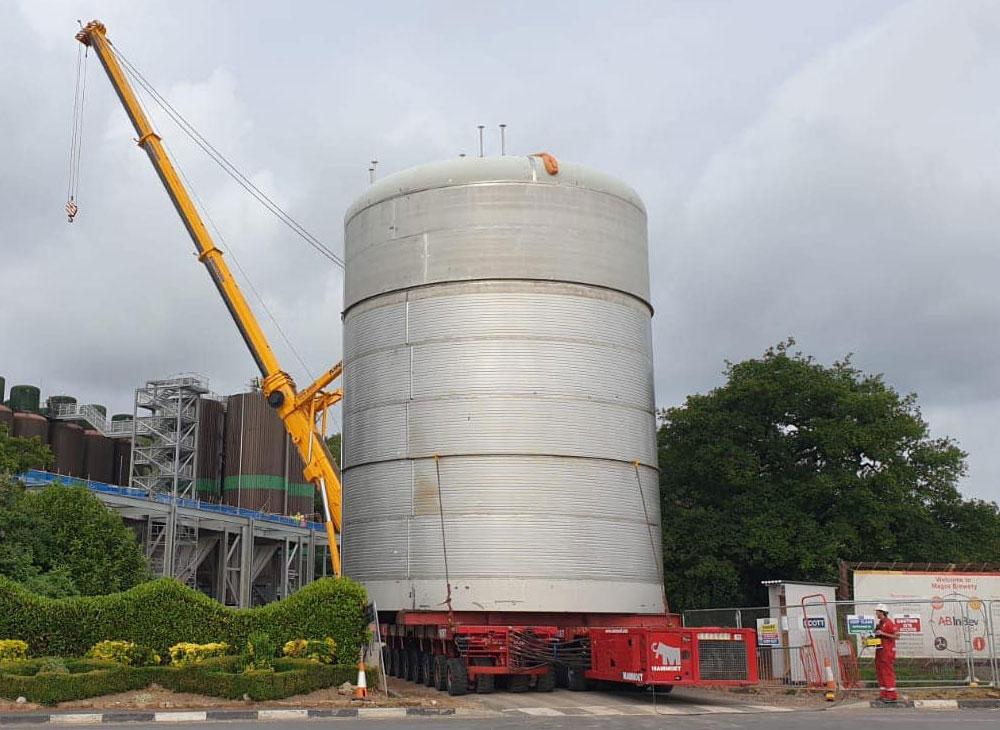

4.2. Fermentation System
Fermenters (FV): Cylindro-conical tanks (CCTs) with cooling jackets
Capacity Range: Matches brewhouse size (with double or triple batches possible)
Key Features:
Dimple jacket cooling zones
Polyurethane insulation (80–100 mm thick)
Top manhole or side manhole
CIP spray ball and arm
Pressure relief valve
Thermowell for temperature probes
4.3. Bright Beer Tanks (BBT)
Use: Beer maturation, carbonation, and serving
Pressure Rating: Typically 2–3 bar
Configurations: Horizontal BBTs & Vertical BBTs
.jpg)
4.4. Auxiliary Systems
Steam Boiler: For brewhouse and CIP heating (supplied if steam heating selected)
Cooling System: Glycol chiller units, Glycol tanks and pumps
CIP System: CIP Cart or fixed CIP station with acid and caustic tanks, pumps, and heating
Water Treatment System: Water softening, RO (reverse osmosis) systems (optional)
Air Compressor: For pneumatic valve operation and bottling/canning systems
Control Systems:Centralized PLC controls, SCADA systems (optional for large projects)
4.5. Packaging Lines (Optional)
Bottle Filling Line: Rinsing, filling, capping, labeling
Can Filling Line: Filling and seamers
Kegging System: Semi-auto or fully automatic keg washers and fillers
.jpg)
4.6. Customization & Turnkey Services

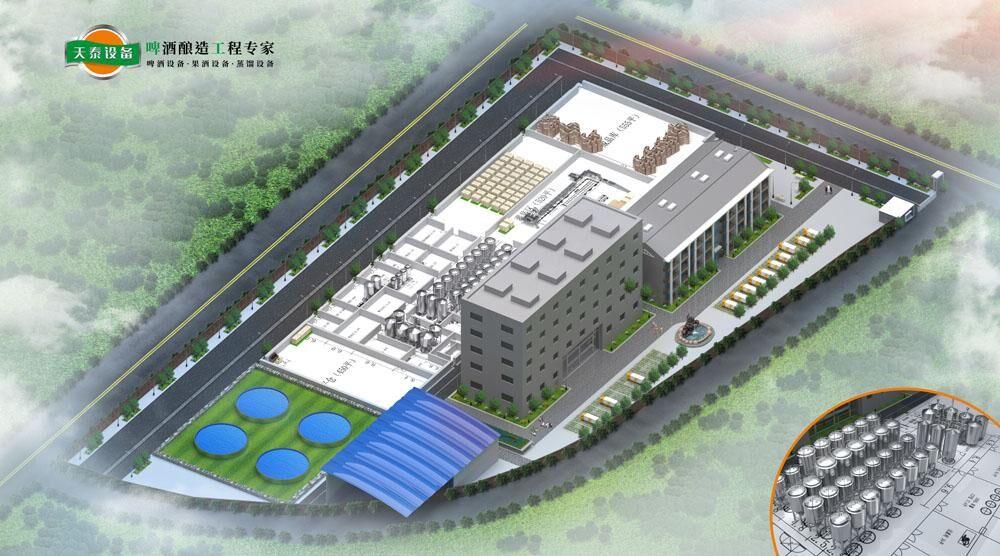

Brewery Layout Design: 2D and 3D drawings
On-Site Installation and Commissioning: Sending engineers to your site
Training: Teaching brewery operation, maintenance, and basic troubleshooting
After-Sales Support: Lifetime technical support, spare parts supply
5.Special Advantages of TIANTAI Systems:
Tailored Designs: They custom-build systems depending on the brewery’s space, style (traditional, modern), and budget.
Global Certifications: CE, UL, ASME, PED certifications available.
Cost-Effective: High-quality systems at competitive pricing compared to European or North American manufacturers.
Experience: Over 20 years exporting to North America, South America, Europe, Africa, and Asia.
Tiantai Company, a well-recognized manufacturer of beer and beverage equipment industry based in Jinan city of China, provides complete lines and the turnkey service for breweries and beverage projects worldwide. Since 2001, Tiantai team has witnessed the rapid development of the industry with 23 years of experience. Founded in 2012 and followed by the boom of the craft beer market, Tiantai Company is committed to the research and the development of diverse brewing process, customized equipment, automatic control, and datalized management.
