TIANTAI 500L Three-Tank CIP System – High-Capacity Cleaning Solution with Variable-Speed Pump Control
The TIANTAI 500L CIP System is a high-performance Clean-In-Place solution designed for medium to large-scale breweries, beverage plants, and food processing facilities. Featuring a three-tank configuration, integrated sanitary pump, and intelligent control system with optional variable frequency drive (VFD), this unit delivers a complete, efficient, and automated cleaning process.
Three-Tank Configuration for Complete CIP Cycles

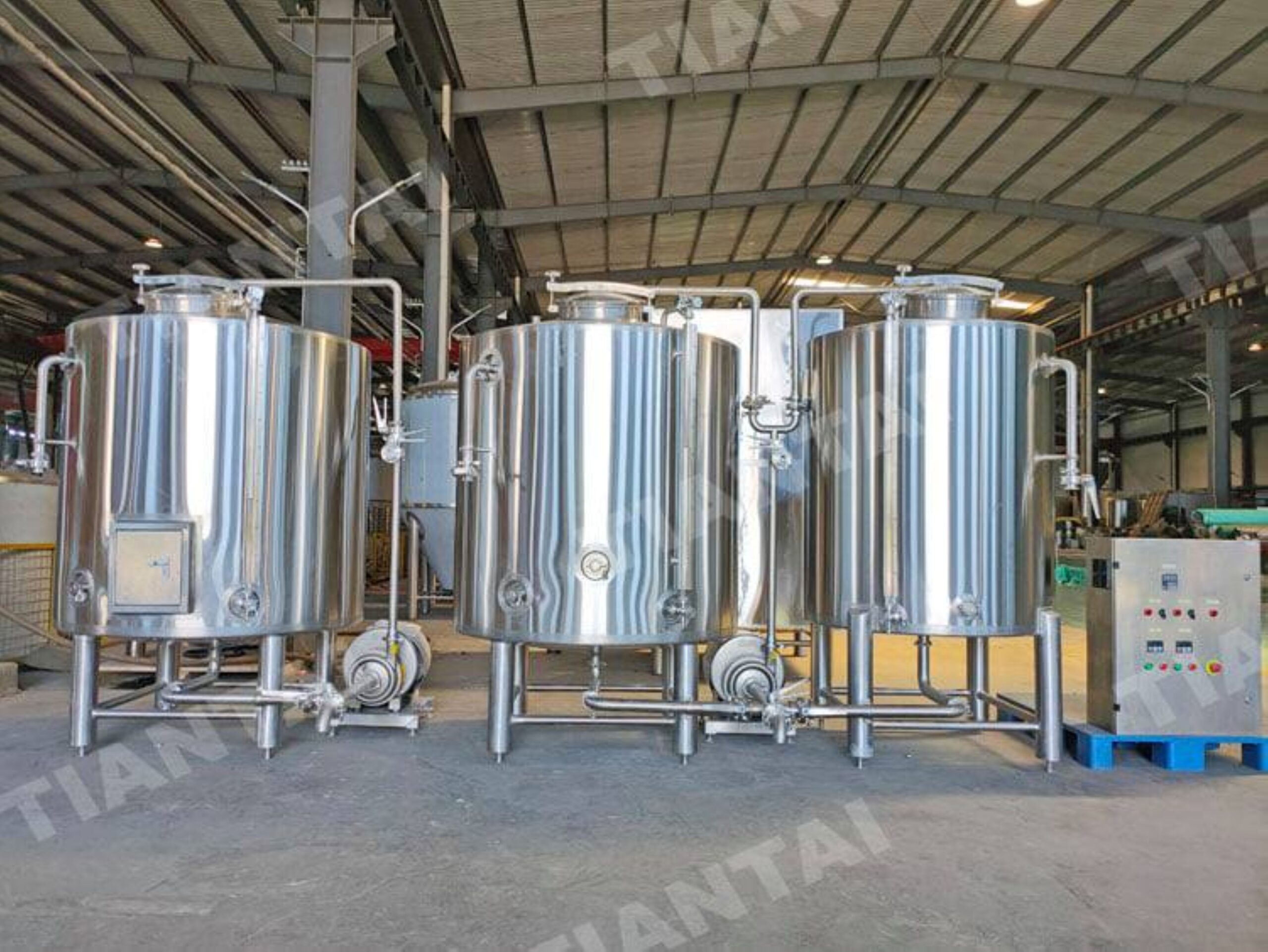

The system is equipped with three 500L tanks, typically configured as:
- Alkali (caustic) tank
- Acid tank
- Hot water or sanitized water tank
This configuration allows for a full multi-step CIP process, including alkaline cleaning, acid descaling, and final rinsing or sanitization, ensuring thorough removal of organic residues, mineral deposits, and microorganisms.
High-Capacity Design for Demanding Applications
With 500L per tank, the system provides:
- Sufficient volume for large vessels and long pipeline circuits
- Continuous and efficient cleaning operations
- Reduced need for frequent refilling
Ideal for facilities with higher production capacity and stricter hygiene requirements.
Variable-Speed Pump with VFD Control
The system can be equipped with a variable frequency drive (VFD) to adjust pump speed:
- Precise control of flow rate and pressure
- Adaptability to different tank sizes and CIP circuits
- Optimized spray ball performance
- Energy savings and reduced mechanical wear
This feature enhances flexibility and ensures consistent cleaning results across various applications.
Integrated Sanitary Pump
A high-quality centrifugal pump ensures:
- Reliable circulation of cleaning solutions
- Adequate pressure for effective spray cleaning
- Stable and continuous operation during CIP cycles
Designed to handle caustic, acid, and hot water solutions safely and efficiently.
Intelligent Control System
The system includes a dedicated control cabinet for:
- Centralized control of pumps, valves, and process sequences
- User-friendly interface for easy operation
- Optional semi-automatic or fully automatic CIP programs
- Improved process consistency and reduced labor intensity
- Hygienic Stainless Steel Construction
- Fabricated from food-grade SUS304 stainless steel (optional SUS316)
- Smooth internal surfaces with sanitary welds
- Corrosion-resistant and easy to clean
Ensures compliance with strict hygiene standards in food and beverage production.
Efficient & Cost-Effective Operation
The optimized design helps:
- Reduce water, chemical, and energy consumption
- Improve cleaning efficiency and turnaround time
- Lower overall operating costs
- Applications
The TIANTAI 500L CIP system is suitable for:
- Craft breweries and large microbreweries
- Distilleries and beverage production facilities
- Kombucha and functional beverage plants
- Dairy and liquid food processing industries
Key Features
- Three 500L tanks for full CIP process
- Integrated sanitary centrifugal pump
- Optional variable-speed control with VFD
- Intelligent control cabinet with automation options
- Hygienic stainless steel construction
- High-capacity, efficient cleaning performance
The TIANTAI 500L Three-Tank CIP System is a powerful and flexible cleaning solution designed to meet the demands of modern production facilities. With its large capacity, intelligent control, and adjustable pump performance, it ensures superior sanitation, operational efficiency, and consistent product quality.
