As beer consumption continues to grow worldwide, breweries are constantly searching for ways to increase production without investing in larger brewhouses or additional fermentation tanks. One of the most successful technologies adopted by large commercial breweries—and increasingly by modern craft breweries—is High Gravity Brewing (HGB) combined with a precision beer dilution system.
But which beers are suitable for high gravity dilution? And what equipment is required to ensure the final beer maintains the same flavor and quality?
Let’s explore.
What Is High Gravity Brewing?
High Gravity Brewing (HGB) is the process of producing beer with a higher original extract (typically 16–20°Plato or higher) than the target finished beer. After fermentation and maturation, the concentrated beer is diluted with deaerated sterile brewing water until it reaches the desired alcohol content, bitterness, color, and extract level. This approach allows breweries to produce significantly more finished beer from the same brewhouse and fermentation capacity.
Instead of brewing 100 HL of 12°P lager, a brewery may produce 70 HL of 17°P beer and later dilute it to obtain approximately 100 HL of finished product.
Which Beer Styles Commonly Use High Gravity Dilution?
Not every beer style is ideal for dilution. The following products are the most common.
1. Standard Pale Lager ⭐⭐⭐⭐⭐
This is the most common application worldwide.
Examples include:
- International Pale Lager
- American Light Lager
- Premium Lager
- Pilsner (industrial production)
Large breweries producing millions of liters annually often brew one concentrated lager base and dilute it into several different alcohol levels.
Advantages:
- Highest production efficiency
- Excellent consistency
- Reduced brewing costs
- Easier inventory management
2. Light Beer
Light beers are perfect candidates because they require lower alcohol content.
Example:
A brewery may ferment beer at 6.0% ABV and dilute it to produce:
- 3.5% Light Beer
- 4.0% Session Beer
- 4.5% Standard Lager
Only one fermentation process is required.
3. Non-Alcoholic and Low-Alcohol Beer
Some breweries combine high gravity brewing with alcohol reduction technologies.
Benefits include:
- Better body
- Improved mouthfeel
- Easier flavor adjustment
- Higher process flexibility
4. Mass-Market Wheat Beer
Certain commercial wheat beers also utilize moderate high gravity brewing.
The dilution ratio is generally lower than that used for lager because wheat beers are more sensitive to body and aroma changes.
5. Session IPA
Many breweries brew a stronger IPA base before dilution to produce lower-alcohol Session IPA.
This method reduces brewing time while maintaining hop aroma. Additional dry hopping is often applied after dilution.
Which Beers Usually Do NOT Use High Gravity Dilution?
Premium craft beers are generally brewed at their final gravity because flavor complexity is the priority.
Examples include:
- Imperial Stout
- Barrel-aged Beer
- Belgian Tripel
- Belgian Quadrupel
- Double IPA
- Hazy IPA (many craft breweries)
- Sour Beer
- Specialty Fruit Beer
Although high gravity techniques can be applied, many craft brewers prefer traditional brewing to maximize aroma, body, and mouthfeel.
Why Large Breweries Prefer High Gravity Brewing?
For breweries operating above 50 HL per batch, the economic benefits are substantial.
Typical advantages include:
Increase Production Capacity
Existing fermenters can produce 20–40% more saleable beer, depending on the dilution ratio and brewery design.
Lower Capital Investment
Instead of purchasing additional:
- Mash tuns
- Lauter tuns
- Fermentation tanks
- Bright beer tanks
Breweries simply install a precision dilution system.
Reduce Energy Consumption
Less wort needs to be boiled for the same finished beer output.
Steam consumption decreases.
Cooling demand decreases.
Cleaning water decreases.
Better Brewing Flexibility
One concentrated beer can become multiple products.
For example:
Base Beer ⇒ 5.5% Lager ⇒ Dilute to 5.0% ⇒ Dilute to 4.5% ⇒ Dilute to 3.8%
One fermentation can supply several different products.

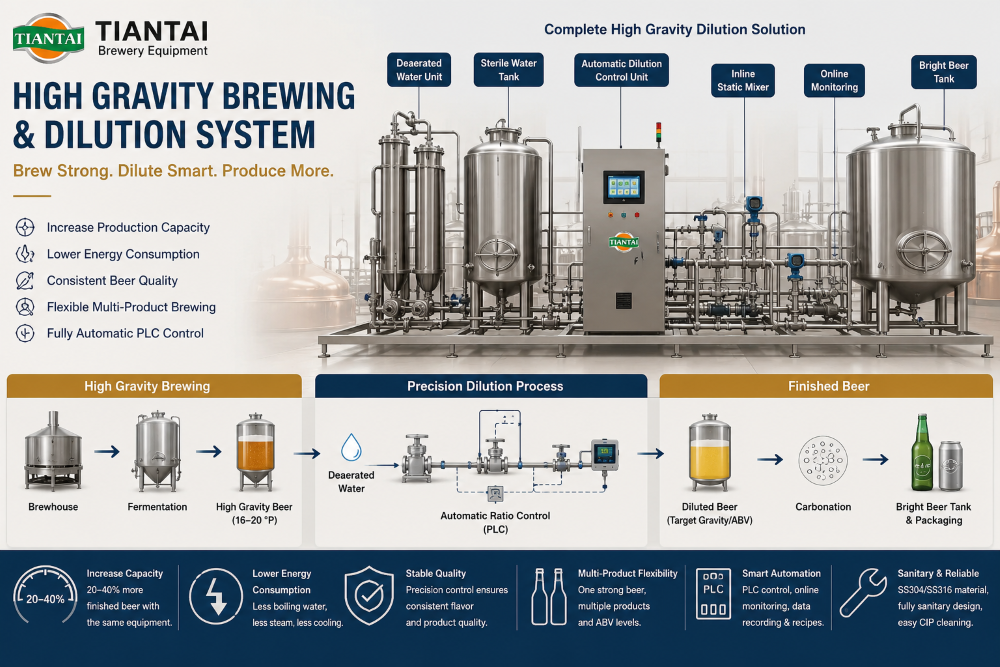

What Equipment Is Required?
A complete High Gravity Dilution System usually includes:
1. Deaerated Water Unit
The dilution water must contain extremely low dissolved oxygen.
Typical DO level: <10 ppb
This protects beer flavor and shelf life.
2. Sterile Water Storage Tank
Maintains sterile brewing water before blending.
Features:
- Sanitary design
- CIP cleaning
- Temperature control
- Sterile vent filter
3. Precision Beer Dilution Unit
The heart of the system.
Functions include:
- Automatic beer/water ratio control
- Inline density measurement
- Alcohol adjustment
- Plato adjustment
- Automatic recipe switching
4. Inline Static Mixer
Ensures perfect blending without introducing oxygen.
5. Online Monitoring Instruments
Including:
- Density meter
- Flow meter
- Pressure sensor
- Temperature sensor
- Alcohol calculation
- PLC automation
6. Carbonation Unit
Because dilution affects dissolved CO₂, the beer is normally carbonated after blending to achieve the target carbonation level.
7. Bright Beer Tank
After blending and carbonation, the finished beer enters the Bright Beer Tank before filtration or packaging.
Quality Control Is the Key
Successful high gravity brewing depends on precise control.
Important factors include:
- Deaerated water quality
- Accurate dilution ratio
- Stable beer temperature
- Oxygen control
- Carbonation adjustment
- Flavor consistency
- PLC automation
Even a small increase in dissolved oxygen during dilution can significantly reduce beer freshness and shelf life.
TIANTAI High Gravity Brewing Solution
TIANTAI supplies complete turnkey High Gravity Brewing and Dilution Systems suitable for breweries ranging from 20 HL to over 500 HL.
Our solution can include:
- Deaerated Water System
- Sterile Water Tank
- Automatic High Gravity Dilution Unit
- Inline Static Mixer
- Carbonation System
- PLC Control with Recipe Management
- Online Plato and Flow Monitoring
- CIP Cleaning System
- Integration with Existing Brewing Lines
Whether you are expanding production, launching multiple beer brands, or improving brewing efficiency, TIANTAI can provide a customized engineering solution that maximizes capacity while maintaining beer quality.
High Gravity Brewing is no longer limited to multinational breweries. Today, many medium-sized breweries also adopt this technology to reduce production costs, increase brewing capacity, and improve operational flexibility.
Beer styles such as Pale Lager, Light Beer, Premium Lager, Session Beer, and selected Wheat Beers are excellent candidates for high gravity dilution, while specialty craft beers are usually brewed at their final strength to preserve their unique character. When combined with a precision deaerated water system, automatic blending equipment, and strict oxygen control, high gravity brewing offers an efficient and reliable way to produce consistent, high-quality beer at a lower overall cost.
TIANTAI delivers complete turnkey High Gravity Brewing solutions—from brewhouse design and deaerated water systems to automatic dilution, carbonation, filtration, and packaging—helping breweries expand production without compromising quality.
